This weekend 's project:

[G+_Nathan Kraemer]

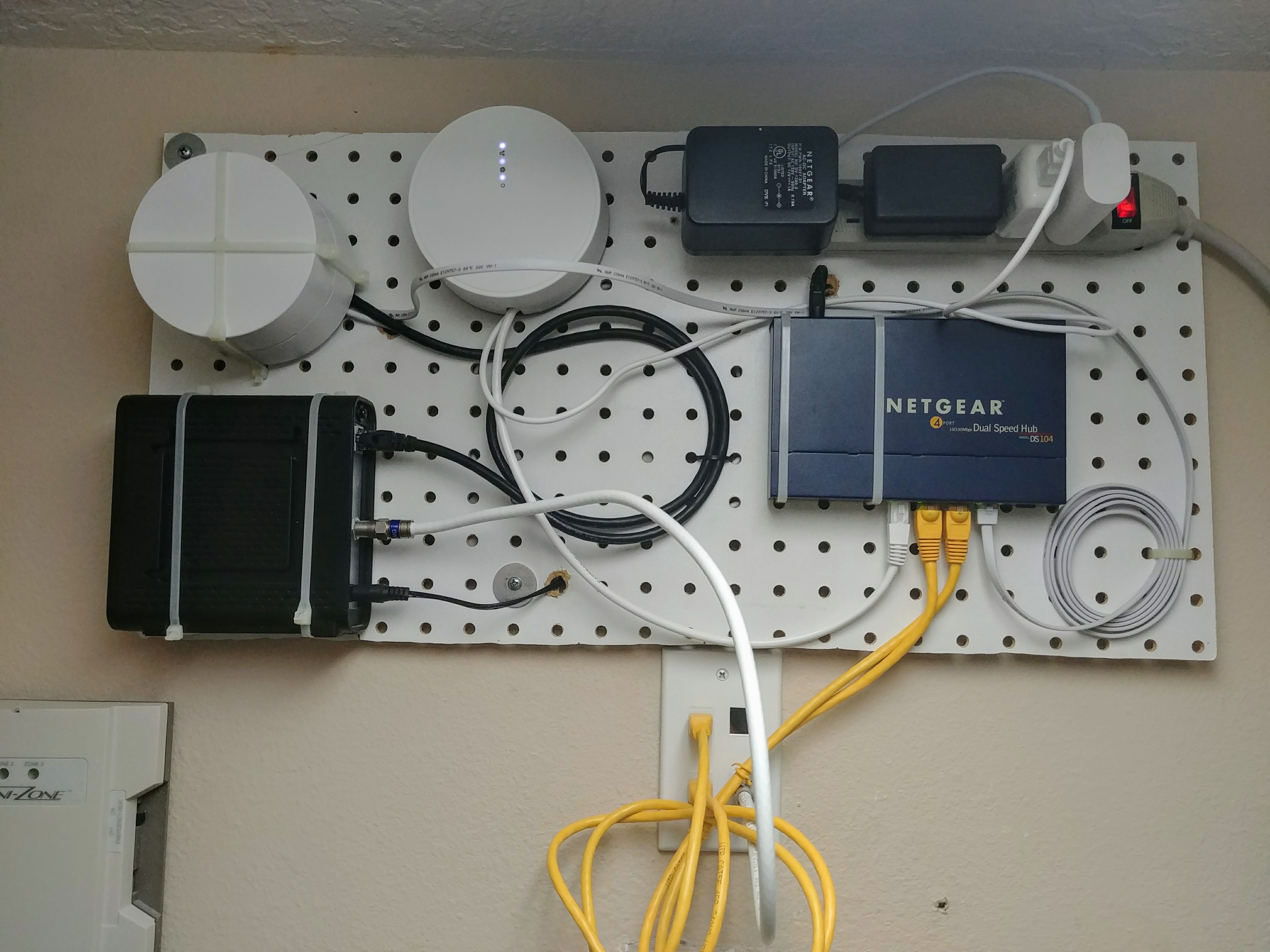

This weekend's project:

1. Trying out Google WiFi Mesh Network

2. If I keep it, I will need to swap out the 4 port hub to a gigabit switch (any recommendations?)

3. Print a Google WiFi pegboard mount

4. Cut some shorter cables

5. Finally buy a UPS



Yes I know everything looks not even, it was scrap peg board.



Oh by the way, added some pads and stand-offs between the board and the wall.

I think next time I will just hang it from some strong hooks.



I do like having the larger holes drilled to have some of the cable management behind the board.

Another great thing is how easy it is to change something out just by taking down the board after unplugging power, internet and a few ethernet cables.



You also see a previous weekend project of re- termiating the phone lines to CAT5e and running them next to where the cable comes in.

[G+_Jason Marsh]

I'm using monoprice gigabit switches. Monoprice item number 10927 or similar should be adequate for you. Did I mention they are quite inexpensive?



For connectors that don't fit through the holes in the pegboard, just drill a .5" (or larger) hole under where each plastic box will sit, and run cables through there, popping out from under the device right where they're needed. You could also make a frame of 1"x2" to mount the board to, giving you about an inch of space behind the board for cable routing.



Of course, you could build a floating shelf for everything to sit on, with holes and a cavity for cable routing, but that would be a bit much. It's only an ugly bunch of stuff hidden away in a utility room or closet, anyways.

[G+_Ben Reese]

TP-Link 8-Port Gigabit Ethernet Easy Smart Switch https://www.amazon.com/dp/B00K4DS5KU/



Here's the last switch I purchased. Has VLAN support which I'll hopefully take advantage of later.



I'm sure about anything will be better than a hub though.

Any features you're looking for?

amazon.com - Amazon.com: TP-Link 8-Port Gigabit Ethernet Easy Smart Switch | Managed Plus | Plug and Play | Desktop | Sturdy Metal w/ Sheilded Ports| Limited Lifetime Replacement (TL-SG108E): Computers & Accessories

[G+_Nathan Kraemer]

Ben Reese? Right now it would be just for: 1. Hardwire one of the mesh access points (or whatever you call it) 2. The Ikea Gateway for Trådfri 3. Hardwire to a desktop.

Possible future upgrades include, NAS, TV Tuner?, additional smart home crap, another computer...

I was think any quality gigabit switch should be fine, no fiber connections etc

I also don't really think I will be using PoE for anything ; any real viable PoE devices I should consider?

[G+_Nathan Kraemer]

Jason Marsh thanks for the input, looks like a great option for an heck of a great price

[G+_Ben Reese]

Nathan Kraemer PoE is the best way to go for wired cameras and access points. Since you're using a wireless mesh system, PoE doesn't help much with the access points. Cameras may still be an option.

[G+_Jason Marsh]

The good thing is, if you run out of ports, you can just expand with another switch. I have only about 15 devices in my home, but I'm using three of those monoprice switches to cover all the wired devices. I did have an early problem with a powerline device and a switch "not getting along", but after upgrading the powerline set to a newer model I no longer have any network issues.



As Ben Reese mentioned, PoE is great for things you're mounting up high or in a difficult place.... such as cameras, tv tuners, other sensors, etc. I haven't bought into the mesh routers because they seem overpriced, but I'd probably have those on PoE as well. if nothing else, at least to keep the power supplies within reach for power cycling/ resetting them if needed.
