My parts from Mouser Electronics arrived. http://www.mouser.com/

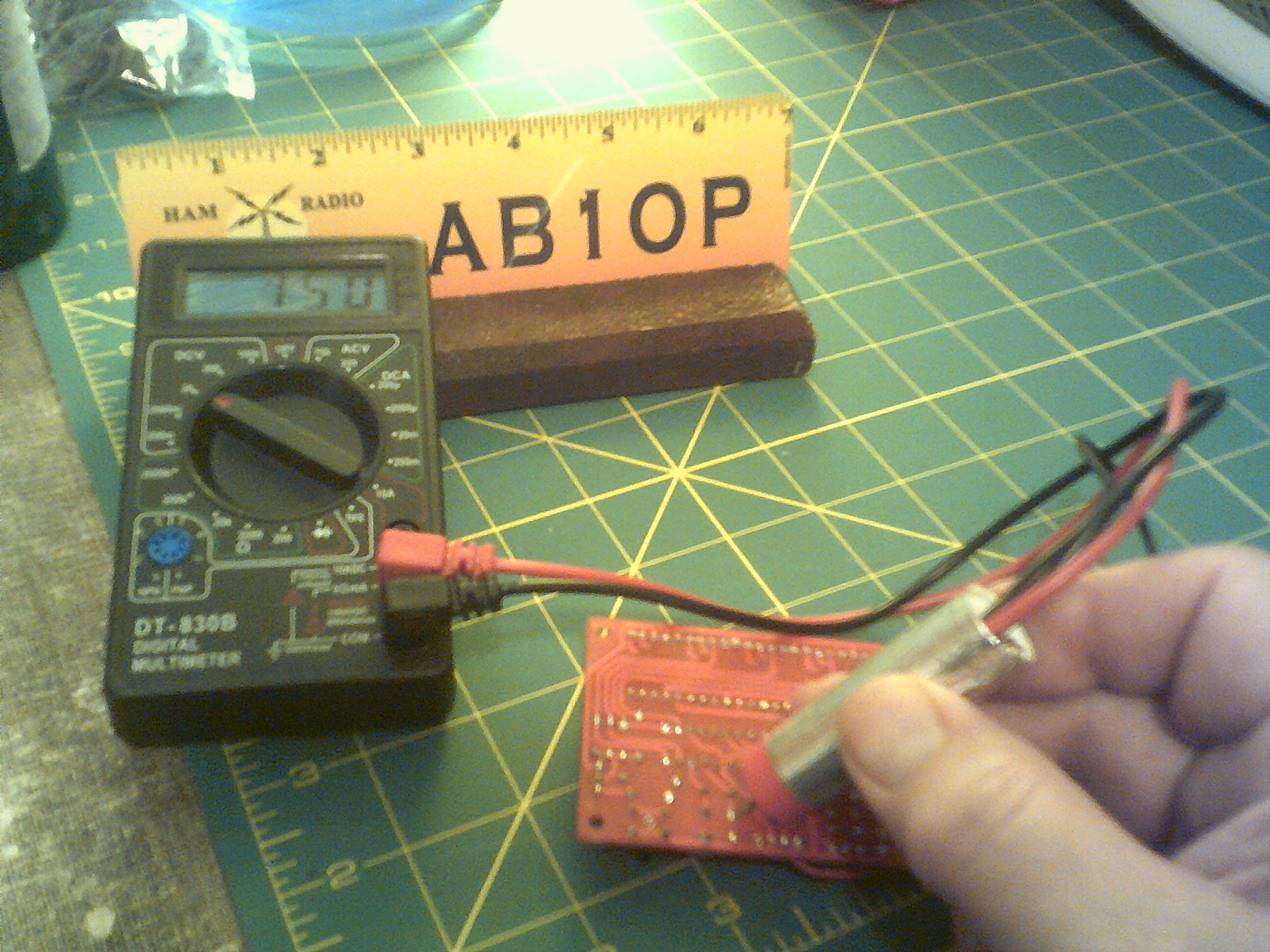

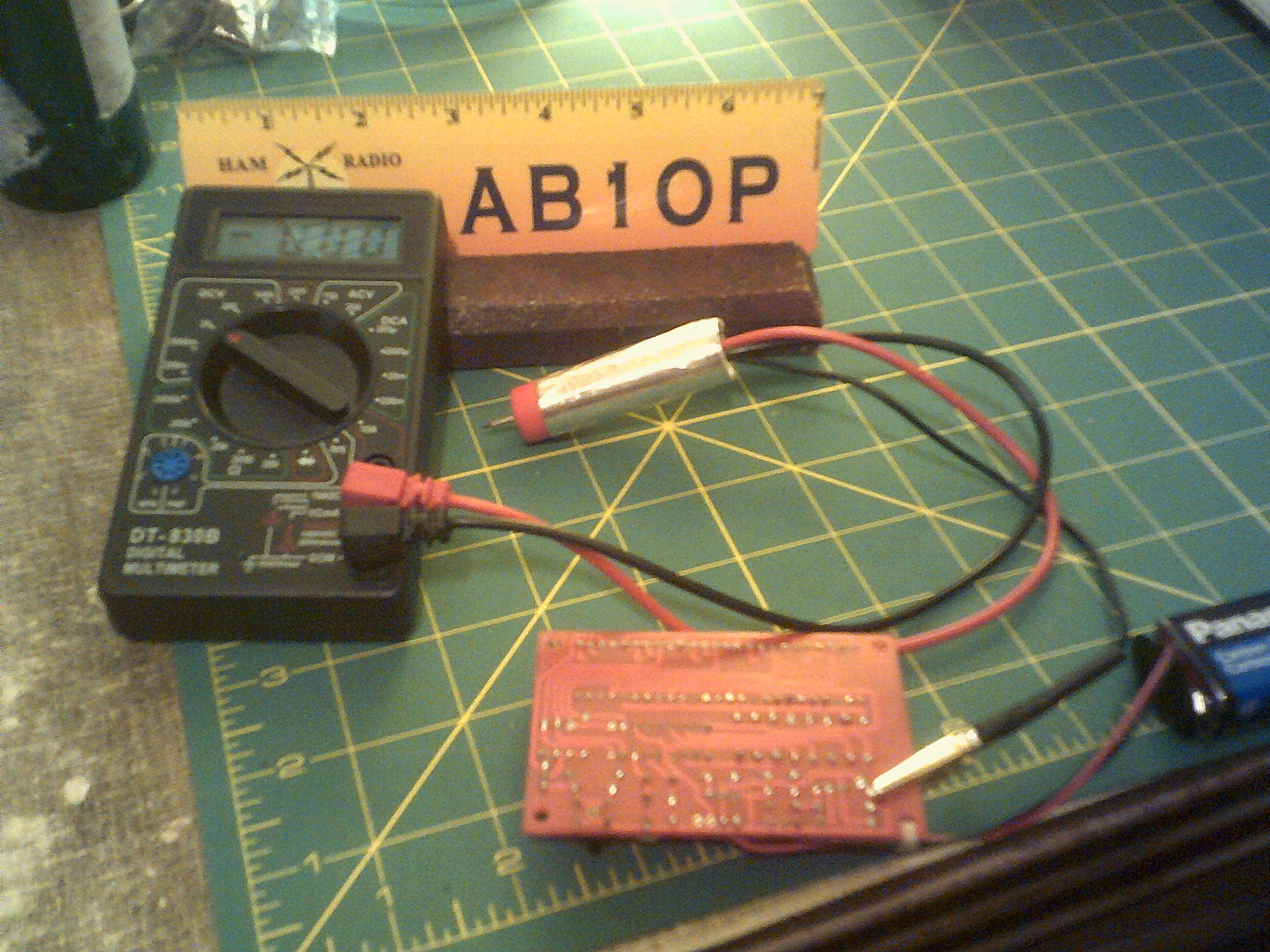

I had to wait this long to require enough projects/parts to make it worth the S&H. I built a RF probe with two scaling resistors (412K and 2K) to mate with my $8 One(1) Megohm input impedance DVM, Other parts includes a 1n34a diode; 0.01uf disc cap.; the old DVM probes (the red one had its wire lead separate from the tip, had to break open the molded handle to reuse the tip.); Alligator clip; wire; Aluminum tape and a depleted and cleaned out lip balm case. The second picture shows it in action on the high side (1.50Vrms) of the 20 MHz crystal in my crystal checker. 73 de AB1OP_Ralph
