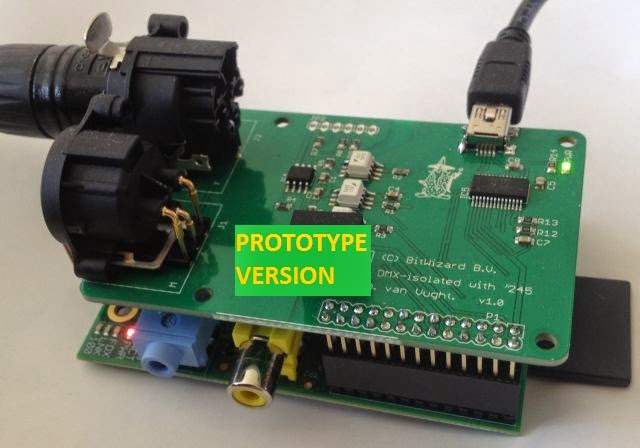

G+_Travis Hershberger Posted May 31, 2015 Share Posted May 31, 2015 DIY DMX? Sweet! Originally shared by Arjan van Vught Open source USB DMX with 1500V optical isolation and compatibility with software that supports Enttec USB Pro. Link to comment Share on other sites More sharing options...
G+_Ben Reese Posted May 31, 2015 Share Posted May 31, 2015 Awesome! When can I get this? Link to comment Share on other sites More sharing options...
G+_Travis Hershberger Posted May 31, 2015 Author Share Posted May 31, 2015 I don't know yet, but I want one! Link to comment Share on other sites More sharing options...
G+_Nick Whitworth Posted May 31, 2015 Share Posted May 31, 2015 I've built an Arduino DMX receiver before. I controlled a bunch of LEDs for a project a friend and I did. It's pretty easy to bitbang DMX in and out of a PC using an FTDI cable and a MAX485 chip. From a quick glance at the PCB, it looks like that is what this is doing. Also, 3 pin? Come on people. ;P Link to comment Share on other sites More sharing options...
G+_Ben Reese Posted June 1, 2015 Share Posted June 1, 2015 Nick Whitworth? very cool. I think Arduino would be about as good as a RPi for this application. It surprises me that there aren't more Arduino + DMX projects already out there. Seems like the Pi would be a good platform for a DMX controller. Link to comment Share on other sites More sharing options...
G+_Travis Hershberger Posted June 2, 2015 Author Share Posted June 2, 2015 Ben Reese You can stop giving me ideas on how Pis and Arduinos can work together. Wonder what type of a lighting setup you could create? I've seen some crazy lighting equipment in my day, and I bet either type of board would make the controller for the true crazy light/light effects much simpler. (Think 8 arms with multiple rotating mirrors in each arm, disco ball type base below that, and finally rotating spots on the lowest bit. Oh yeah, and the arm lights and spots can all change color.) Link to comment Share on other sites More sharing options...
