G+_T Burns Posted April 7, 2015 Share Posted April 7, 2015 Looking at the KK 2.1.5, there is a voltage monitor built in. How do I use this? Do I have to split off of my 2-pin battery connection with my HK FPV250 or is there a connector that goes from the balance plug to the two pins on the KK? Link to comment Share on other sites More sharing options...
G+_Fr. Robert Ballecer, SJ Posted April 7, 2015 Share Posted April 7, 2015 Well... maybe... just MAYBE we'll show you. :) (Basically, take the Positive lead only from the Power Distribution Harness and plug it into the positive pin.) Link to comment Share on other sites More sharing options...
G+_Dan Salter Posted April 7, 2015 Share Posted April 7, 2015 I've posted a link to the KK1.5 manual by HobbyKing above which discusses suitable low voltage alarm values. Check out my Quad Build G+ Album for a shot and description of my solution if you can't wait for Fr. Robert's. (I don't want to steal too much if his #Awesome thunder!) Link to comment Share on other sites More sharing options...

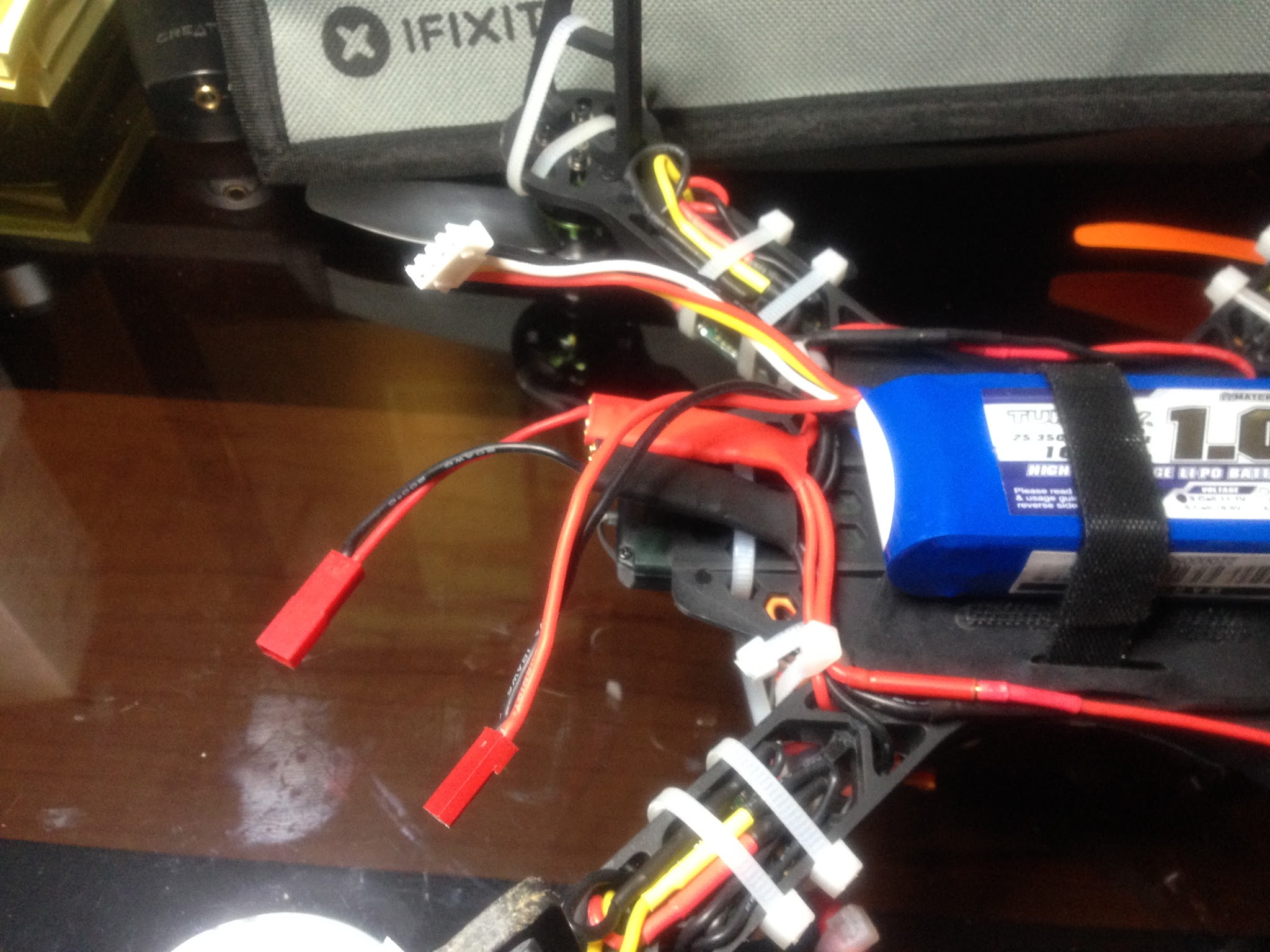

G+_Michael Heinz Posted April 7, 2015 Share Posted April 7, 2015 I built a cable to connect my voltage alarm to the sensor cable of my battery. Link to comment Share on other sites More sharing options...

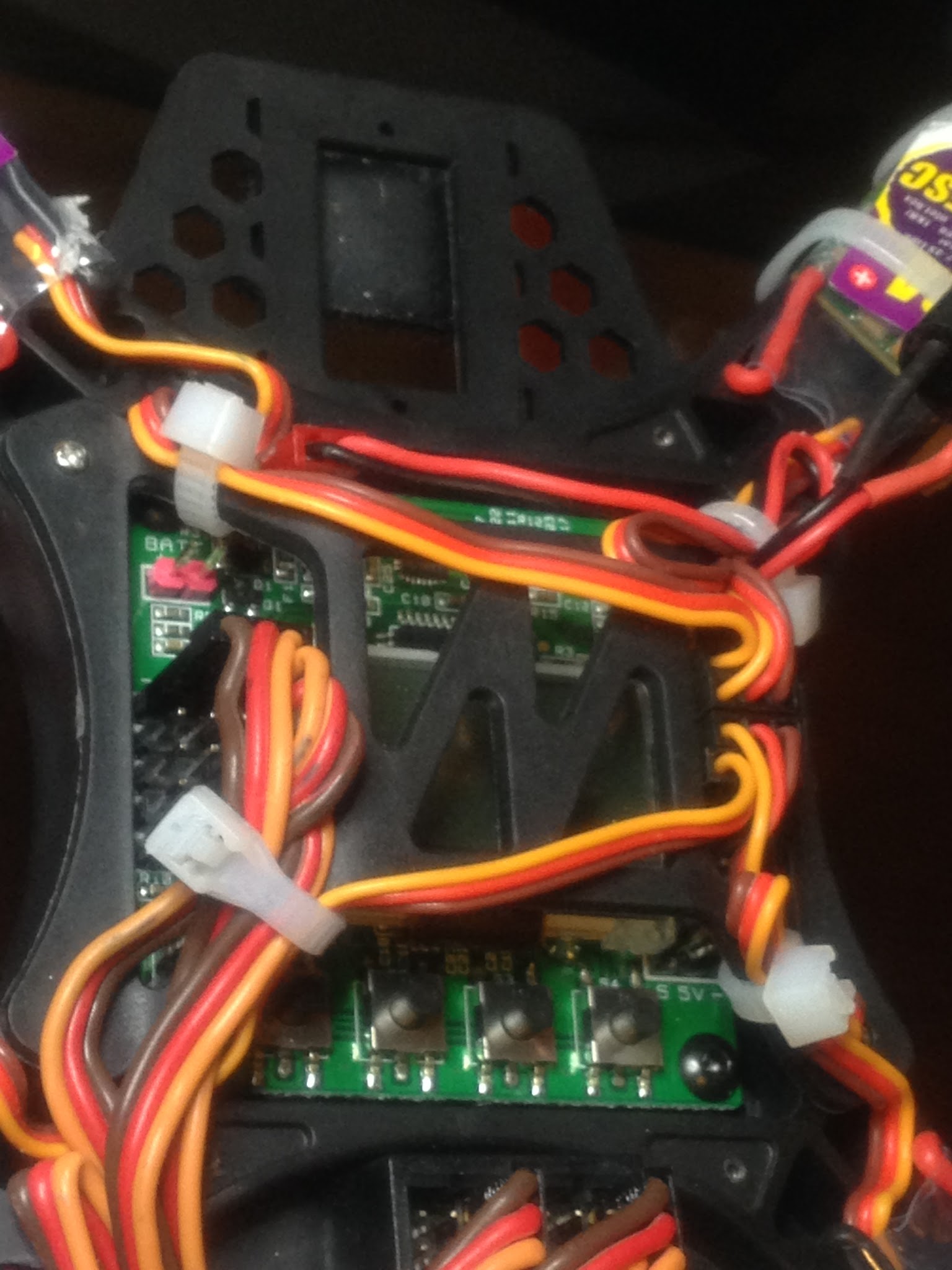

G+_Michael Heinz Posted April 7, 2015 Share Posted April 7, 2015 BTW - I had to rotate the cage of the quad 90 degrees to provide enough clearance for a servo lead to connect to the voltage sensor. I suspect a female JST connector would also fit...? Link to comment Share on other sites More sharing options...
