So my son asked for me to teach him electronics. I only know the very basics, but was always interested to learn more, so I bought an Arduino Nano, a breadboard and various odds and ends. I'm just experimenting with simple stuff for now, but am confused by this.



I started with a sketch to fade an LED on and off. I added a pot to control the speed of the fade. Then I added a second LED and made it so when one was fading on, the other was fading off.



I have it working perfectly... with a catch. The confusing part is that if I switch the LEDs to other pins and update the sketch accordingly, they blink on/off instead of fade. Some pins will fade, others blink. So if I change the LEDs to run off pins 4 and 2, they'll both blink. If I change them to 6 and 8, one will blink the other will fade. It's not an even/odd thing, and I can't find any explanation for this behavior.



Any ideas?



Thanks in advance.



Here's my sketch:



int sensorPin = A7; // select the input pin for the potentiometer

int sensorValue = 0; // variable to store the value coming from the sensor

int RedLedPin = 5; // LED connected to digital pin 5

int BlueLedPin = 3; // LED connected to digital pin 3

int BlueFadeValue = 255;

int RedFadeValue = 0;



void setup() {

// nothing happens in setup

}



void loop() {

sensorValue = analogRead(sensorPin);

sensorValue = map(sensorValue, 0, 1023, 5, 255);





for (int FadeValue = 0 ; FadeValue <= 255; FadeValue += sensorValue) {

BlueFadeValue -= sensorValue;

RedFadeValue += sensorValue;

if (BlueFadeValue < 0)

{

BlueFadeValue = 1;

}

if (RedFadeValue > 255)

{

RedFadeValue = 255;

}

analogWrite(RedLedPin, RedFadeValue);

analogWrite(BlueLedPin, BlueFadeValue);

delay(30);

}





for (int FadeValue = 255 ; FadeValue >= 0; FadeValue -= sensorValue) {

BlueFadeValue += sensorValue;

RedFadeValue -= sensorValue;

if (RedFadeValue < 0)

{

RedFadeValue = 1;

}

if (BlueFadeValue > 255)

{

BlueFadeValue = 255;

}

analogWrite(RedLedPin, RedFadeValue);

analogWrite(BlueLedPin, BlueFadeValue);

delay(30);

}

}

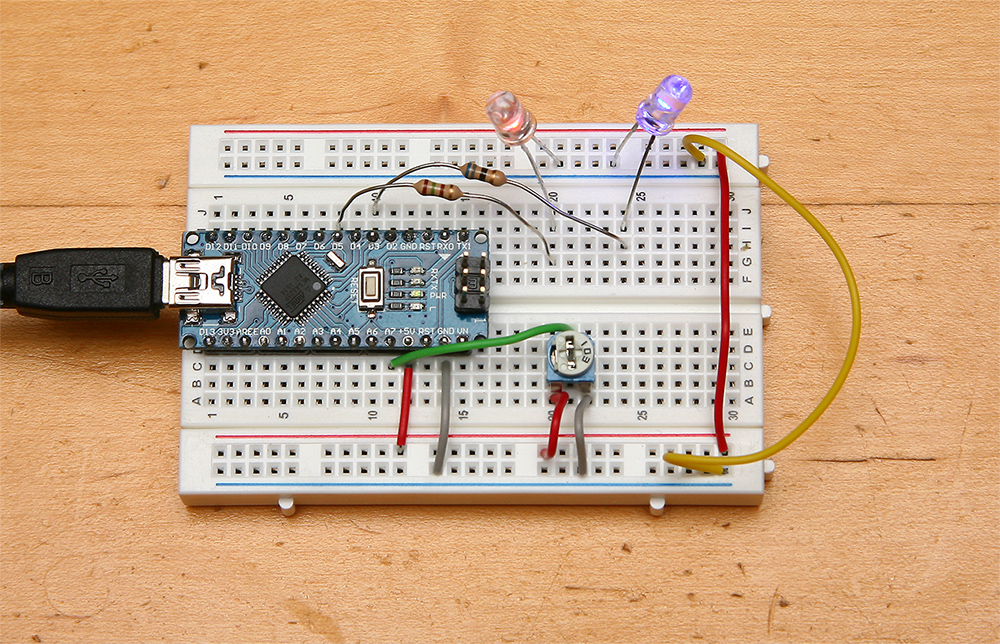

And here's my circuit:

[G+_Ben Reese]

First, I was impressed with the clarity of your photo! Looks like you cheated and used a Canon EOS - well done!

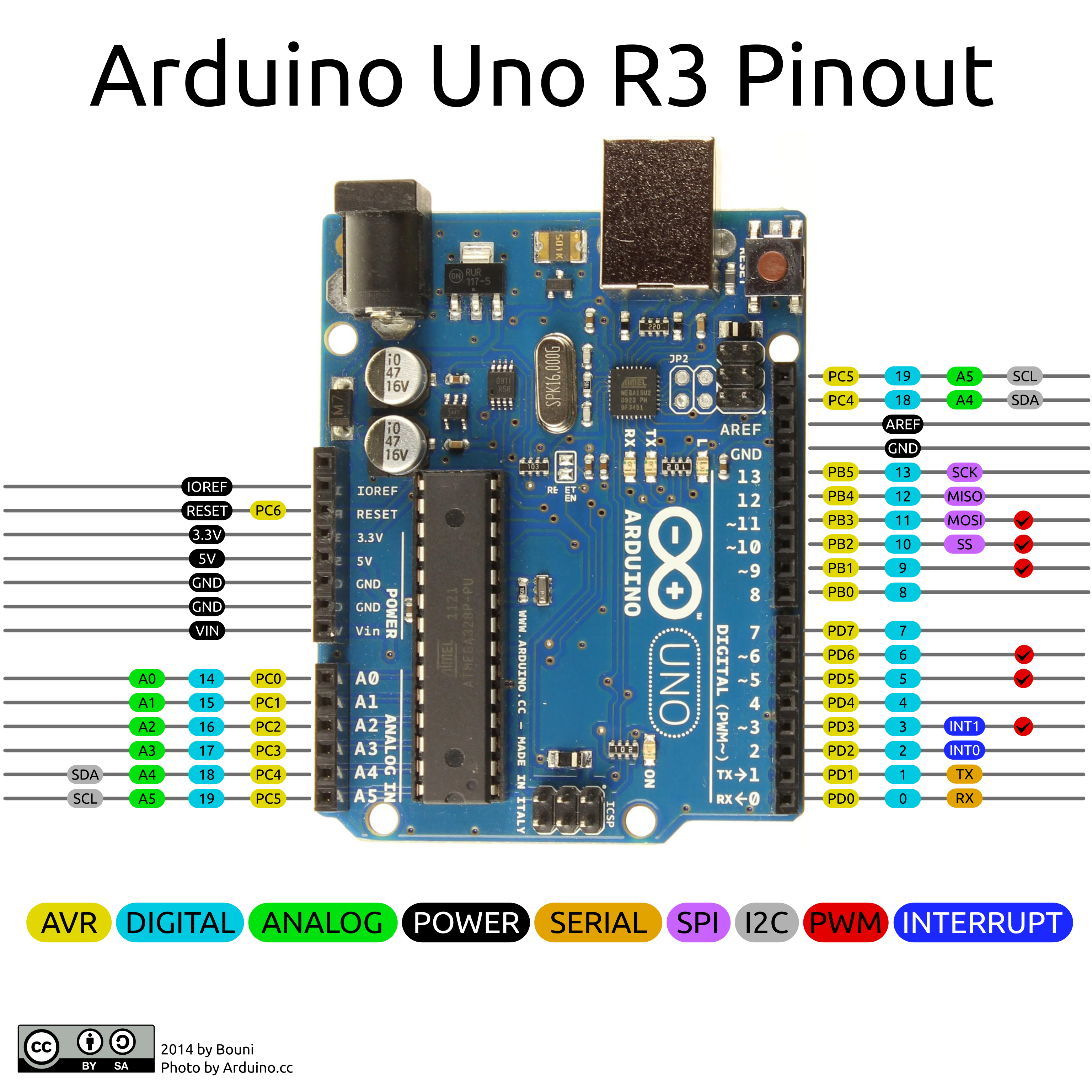

Second, I think you're running into an issue of some pins being PWM and some not. This picture is from the UNO, but I believe the pins have essentially the same capability. Pins 2, 4, and 8 are not marked as PWM but pin 6 is. I haven't looked through your code yet, but I'm pretty sure this is the difference. I'd try other PWM pins (3, 5, 6, 9, 10, 11) to see if that matches up.



[G+_Ben Reese]

Here's the Arduino reference for analogWrite: https://www.arduino.cc/en/Reference/AnalogWrite

[G+_Chris O'Riley]

Thanks Ben, that was exactly it, just tested it and it works perfectly on any PWM pin, but blinks on non-PWM pins. I totally forgot that some pins are PWM and others aren't.



And thanks, yea, I took the photo with my 5D. I initially took it with my phone, but hate to post a bad photo when I can post a better one!



Thanks again!

[G+_Eddie Foy]

Grab the datasheet for the chip from Atmega (now Microchip) and read up on peripheral config registers. It really pays to understand the actual hardware underneath.
