G+_Rud Dog Posted March 2, 2016 Share Posted March 2, 2016 Updated. Link to comment Share on other sites More sharing options...
G+_Tim D Posted March 2, 2016 Share Posted March 2, 2016 Why don't you just keep router 2&3 as switch's and have it all in the same subnet? Link to comment Share on other sites More sharing options...
G+_Rud Dog Posted March 2, 2016 Author Share Posted March 2, 2016 One of the routers branches is intended for Internet of things the other my secure lan. IOT's has had some reports of security problems and this prompted me to search out a way of defending against intrusion or at least attempting it. Link to comment Share on other sites More sharing options...

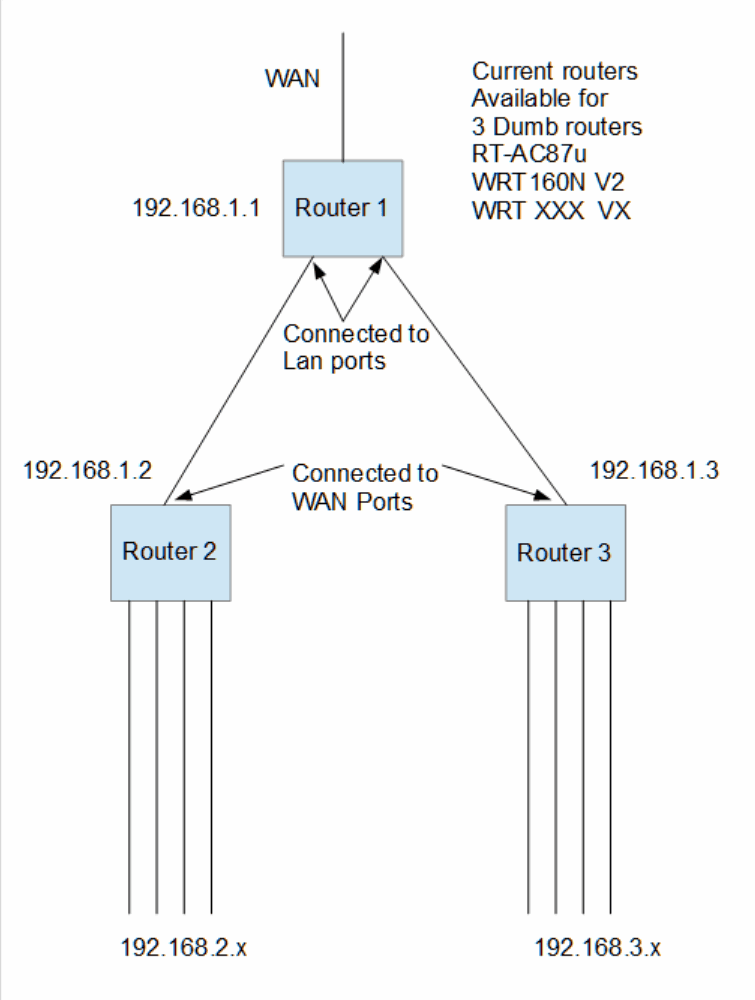

G+_Fr. Robert Ballecer, SJ Posted March 2, 2016 Share Posted March 2, 2016 Tim Dickinson? he's going for the "3 Dumb Router" setup. Nodes on .2 are protected from those on .3 and vice versa. If he flattened the network, that would defeat the design. Link to comment Share on other sites More sharing options...
G+_Thomas Reiner Posted March 3, 2016 Share Posted March 3, 2016 Tim Dickinson? that would be like having a safe without a back wall... Looks good but useless ;-) Link to comment Share on other sites More sharing options...
G+_Rud Dog Posted March 3, 2016 Author Share Posted March 3, 2016 Fr. Robert Ballecer, SJ During your last show there was a mention of the synology router having VLAN capability(can't stop thinking about this, love the idea). Does this apply to the wireless portion of the router or just the physical ports on the router? Link to comment Share on other sites More sharing options...
G+_Russell Williams Posted March 3, 2016 Share Posted March 3, 2016 Fr. Robert Ballecer, SJ? I asked in another discussion, if Router 1 was running DD-WRT & this capable of VLAN support b do you still need 3 dumb routers? I agree the the approach offers less of a ball ache. Link to comment Share on other sites More sharing options...
G+_Rud Dog Posted March 3, 2016 Author Share Posted March 3, 2016 Russell Williams The cost is the main factor in not purchasing a switch with VLAN capability(for me). If I had know the Synology offered VLAN for it ports it would have been my choice. Unfortunately it was not available when my purchase of the RT-AC87u was made. Link to comment Share on other sites More sharing options...
G+_Tim D Posted March 7, 2016 Share Posted March 7, 2016 Just get smoothwall running and lock down your network. vlan is not a substitute for a secure network. Link to comment Share on other sites More sharing options...
G+_Rud Dog Posted March 7, 2016 Author Share Posted March 7, 2016 Tim Dickinson It never fails when asking for help or input on this medium someone always comes up with something new and interesting now for the reading part. Thanks Tim Link to comment Share on other sites More sharing options...
