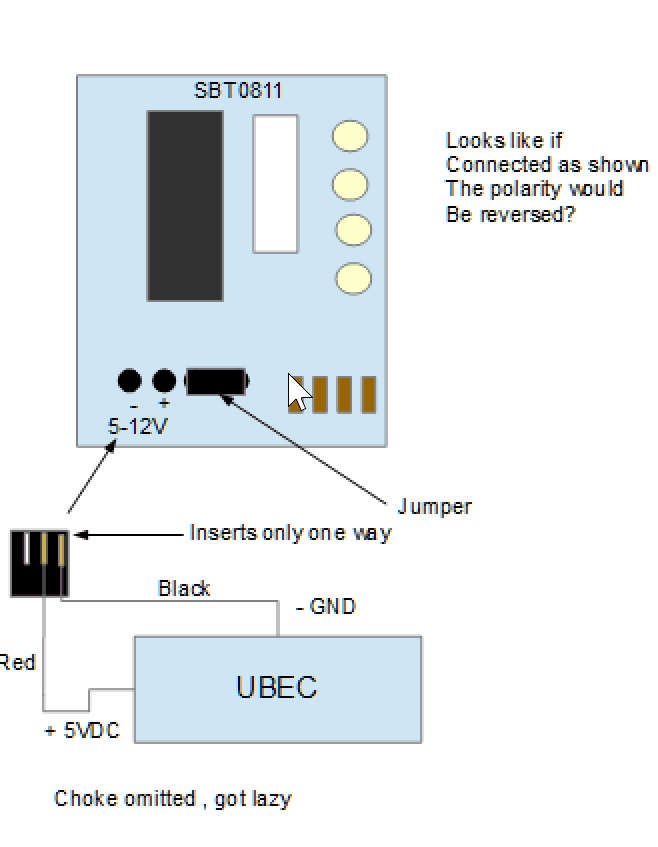

G+_Rud Dog Posted May 18, 2016 Share Posted May 18, 2016 Corrected drawing of UBEC and SBT0811 Link to comment Share on other sites More sharing options...
G+_Scott W Posted May 18, 2016 Share Posted May 18, 2016 Take the pins out and reverse them. Link to comment Share on other sites More sharing options...
G+_Rud Dog Posted May 19, 2016 Author Share Posted May 19, 2016 Was looking for confirmation my assumption on the shown pins for the stepper motor board were indeed as I show them. Then it would be as simple as reversing the pins. Any users of the board and UBEC found this to be the solution? Link to comment Share on other sites More sharing options...
