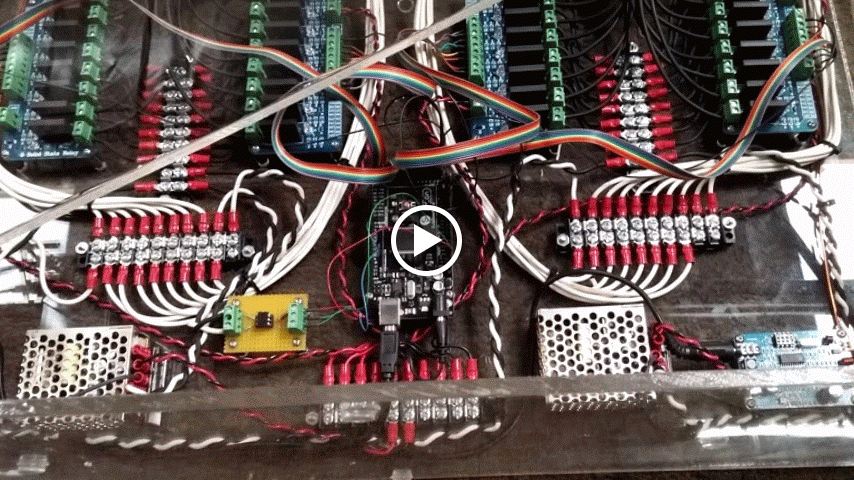

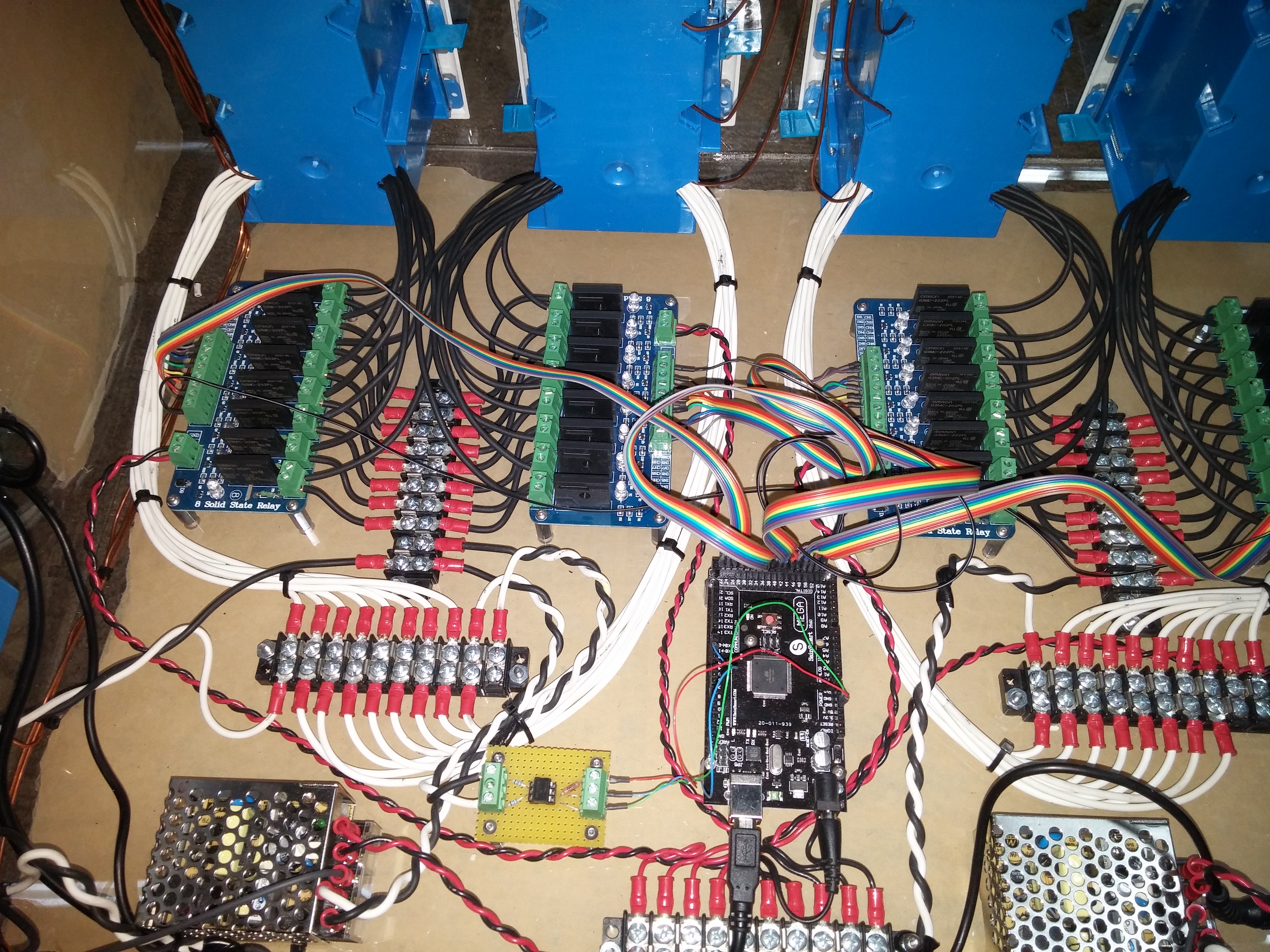

G+_James Mitchell Posted May 13, 2016 Share Posted May 13, 2016 Here is my project, 32 channel Dimmable plexiglass Holiday lights controller using SainSmart (Arduino) 2560 and Vixen software What do you think? Fr. Robert Ballecer, SJ?? ?From beginning Link to comment Share on other sites More sharing options...
G+_Jason Perry Posted May 13, 2016 Share Posted May 13, 2016 Ummm..... Wow. I would like to see that in action. I am guessing the design and plexiglass box is to showcase all the effort that went into making it? Do you have a place inside you are planning on putting it or is it going outside? Link to comment Share on other sites More sharing options...
G+_James Mitchell Posted May 13, 2016 Author Share Posted May 13, 2016 I have a shed on the side of the house. That is where all the extension cords are going into. I am programming the lights now with a custom Snowman that will sing. Two light shows, each will be 1hr 25min long. As far as the plexiglass goes, i have sheets of it just sitting here and yes with all the wiring i wanted to show it off. Link to comment Share on other sites More sharing options...
G+_Ben Reese Posted May 13, 2016 Share Posted May 13, 2016 Jason Perry stole my reaction. Hadn't watched the video yet, but from the picture that looks awesome! Link to comment Share on other sites More sharing options...
G+_610GARAGE Posted May 13, 2016 Share Posted May 13, 2016 Wow, thats a nice wiring job. Link to comment Share on other sites More sharing options...
G+_Jason Perry Posted May 13, 2016 Share Posted May 13, 2016 How many amps is each channel? Are those solid state relays? Link to comment Share on other sites More sharing options...
G+_Jason Perry Posted May 13, 2016 Share Posted May 13, 2016 The more I look at the video the more questions I have! Do you have plans for future videos or a spec/info website? Link to comment Share on other sites More sharing options...
G+_Fr. Robert Ballecer, SJ Posted May 13, 2016 Share Posted May 13, 2016 Hell... To the yahz! :) Link to comment Share on other sites More sharing options...
G+_Brian “Yikesfpv” Gipe Posted May 13, 2016 Share Posted May 13, 2016 Wow! Looks nice, James. I wants to see some lights, dude! Link to comment Share on other sites More sharing options...
G+_Keith Mallett Posted May 13, 2016 Share Posted May 13, 2016 James Mitchell Amazing! What what relay boards are you using? This could also work as a home automation control centre. Link to comment Share on other sites More sharing options...
G+_Keith Mallett Posted May 13, 2016 Share Posted May 13, 2016 James Mitchell Just found your youtube video. Impressive. Thanks for sharing. Link to comment Share on other sites More sharing options...
G+_K Branch jr Posted November 14, 2016 Share Posted November 14, 2016 O MY---!! HOW? WOOOW Link to comment Share on other sites More sharing options...
G+_James Mitchell Posted November 14, 2016 Author Share Posted November 14, 2016 Yep programming is almost done, with a singing snowman that changes genders depending on who is singing Link to comment Share on other sites More sharing options...
G+_Jason Perry Posted November 14, 2016 Share Posted November 14, 2016 I have been waiting since February. ? Can't wait. Link to comment Share on other sites More sharing options...
G+_James Mitchell Posted November 14, 2016 Author Share Posted November 14, 2016 Me too Link to comment Share on other sites More sharing options...
G+_Jason Perry Posted November 14, 2016 Share Posted November 14, 2016 I think one of the key reasons I like this project is their dimmable relays. Link to comment Share on other sites More sharing options...
G+_Ben Reese Posted November 14, 2016 Share Posted November 14, 2016 Yes, the dimmable relays really caught my attention too this last time I saw the post. How are those dimming? Do they detect zero-crossing and dim accordingly, or do they somehow add variable resistance? Link to comment Share on other sites More sharing options...
