Well I think it is time to clean up and call it a day, before someone decides to wake up

[G+_Jason Perry]

Well I think it is time to clean up and call it a day, before someone decides to wake up.

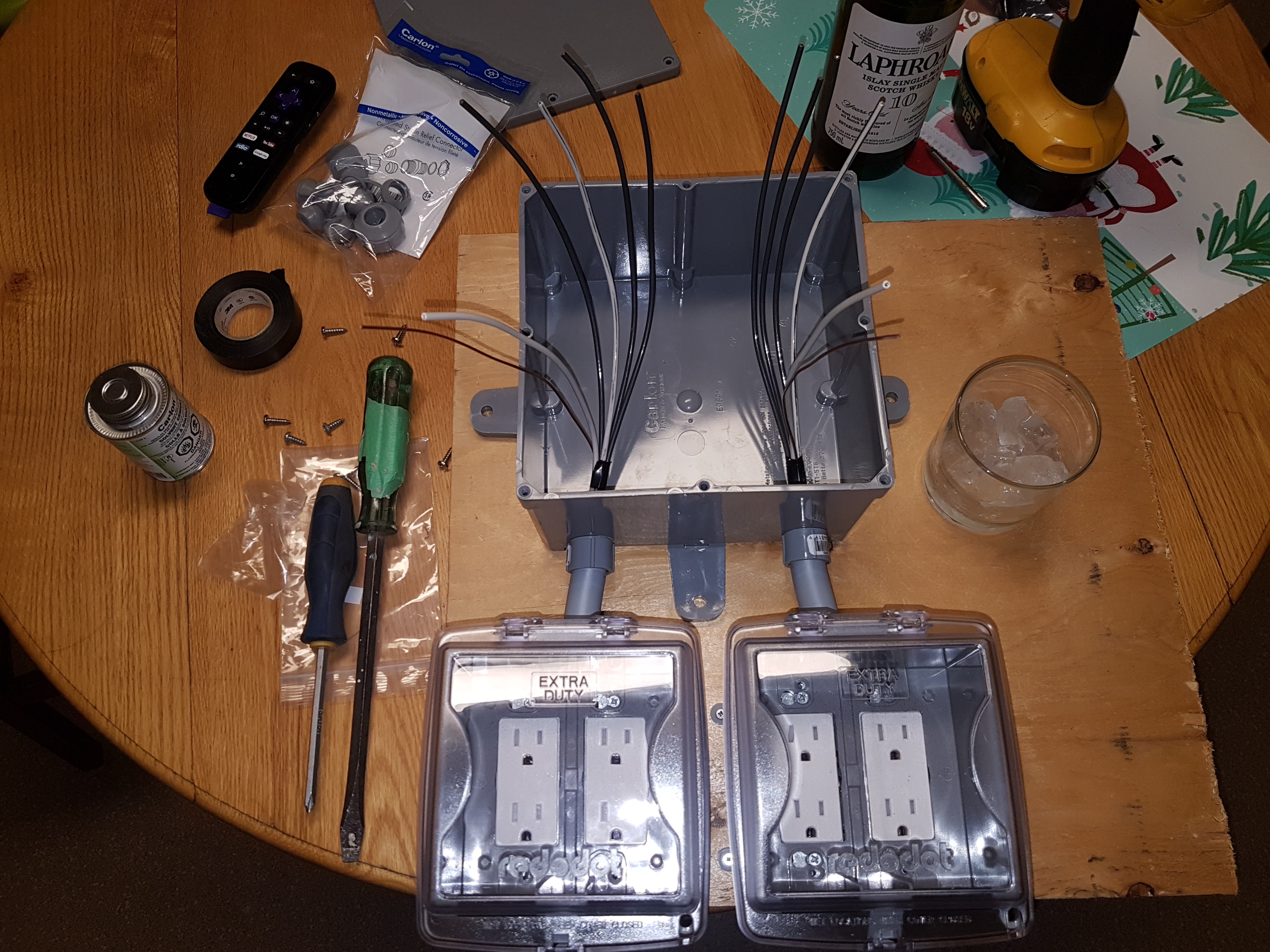

It isn't 32 channels in a fancy Plexiglas box, and I doubt it is even automated this year, but I think it is a good start.

[G+_Golden Retriever]

Hope you're not driving

[G+_Jason Perry]

Not tonight.

My wife is out and the kids are in bed,

and I couldn't help but build this though from my head.

[G+_Dan Baldwin]

Esp and relays in top box?

[G+_Jason Perry]

Dan Baldwin no microcontroller this year. I want to play with vixen and falcon player before I add switching control at the plugs.



I do have an 8 channel SSR board. My intent is to swap out the relays so I can dim, past that it's all up in the air.



This year it is going to house a timer, next year my relay board and an Arduino or ESP.

[G+_Jon Paul Bubendorfer]

Just curious, 3 circuits per duplex box, I see that.

But what's the small wire for?

And my OCD is not happy with your angled PVC. The make offset nipples exactly for that.

[G+_Rud Dog]

Looking good. Where did you pick up the boxes.

[G+_Jason Perry]

Jon Paul Bubendorfer I bent the PVC because of the limitations of my local home depot, believe me I looked.



The neutral and ground for each box are the ones that are separate from the other wires. The one white wire has a black line down it, I didn't feel like wasting, two more lengths of wire, probably should have. I should go out and buy spools of individual wires.



I need to go out and get some Wago lever nuts to finish the job.

[G+_Jason Perry]

Rud Dog everything is from home depot.

[G+_Jason Marsh]

Careful working on the wife's table like that! While soldering the iron slipped off the stand and put two small burns on the dining room table once. Once! :<(

[G+_Jason Perry]

Jon Paul Bubendorfer well, you called it. The one white wire is getting to me. I will be going out and buying a roll of black wire.

[G+_Jon Paul Bubendorfer]

I will not deny, in such a situation, I have put black tape on the visible portion. But that was on really long runs, yours might be easy to swap.

Well done.
