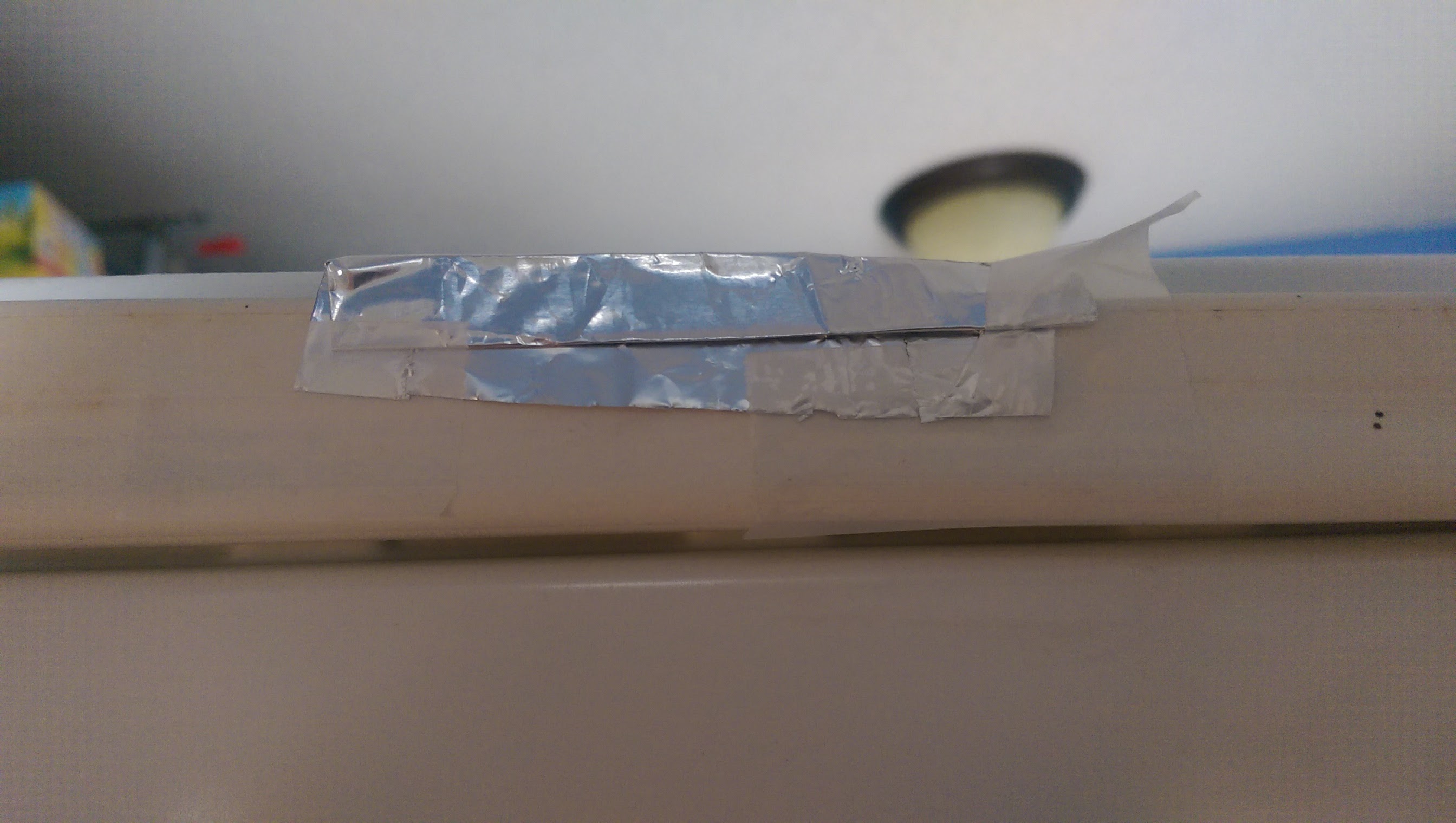

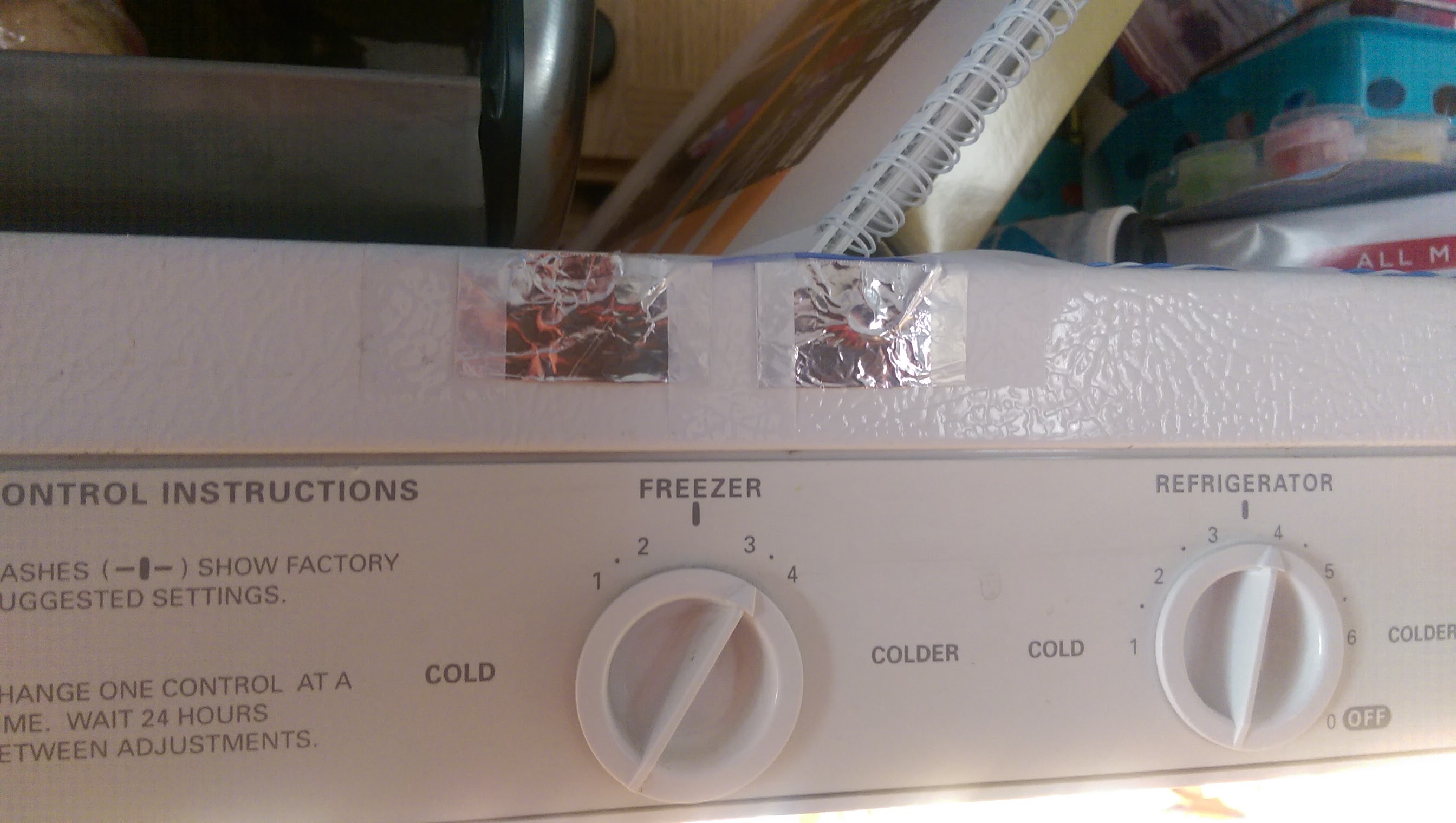

G+_Ben Reese Posted March 4, 2015 Share Posted March 4, 2015 Here's a little Arduino project I did a few days ago. My 15 yo fridge door doesn't always close all the way so I wanted an alarm to tell me when I (or my wife or 2 yo son) leave it open. The switch is a few pieces of aluminum foil. It buzzes after 15, 30, and 45. After 60 seconds it beeps continuously until the door is closed. Link to comment Share on other sites More sharing options...
G+_Jason Perry Posted March 4, 2015 Share Posted March 4, 2015 Very nice. Link to comment Share on other sites More sharing options...
G+_Travis Hershberger Posted March 4, 2015 Share Posted March 4, 2015 What are you using for power, and is it external to the fridge? Nice one. Link to comment Share on other sites More sharing options...
G+_Ben Reese Posted March 4, 2015 Author Share Posted March 4, 2015 I found an unused 9V wall wart lying around and used that. There's an outlet right next to the fridge. Link to comment Share on other sites More sharing options...

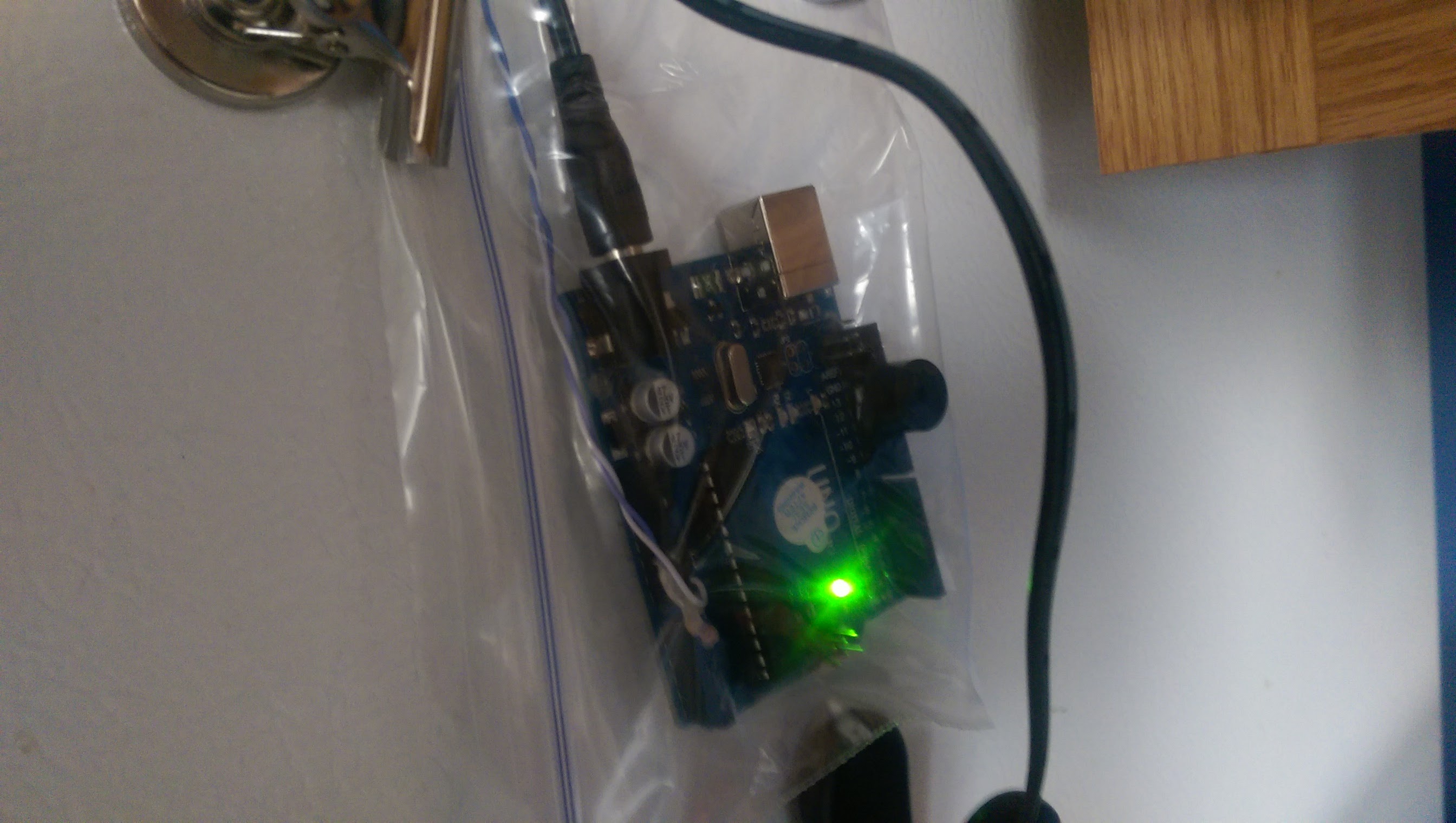

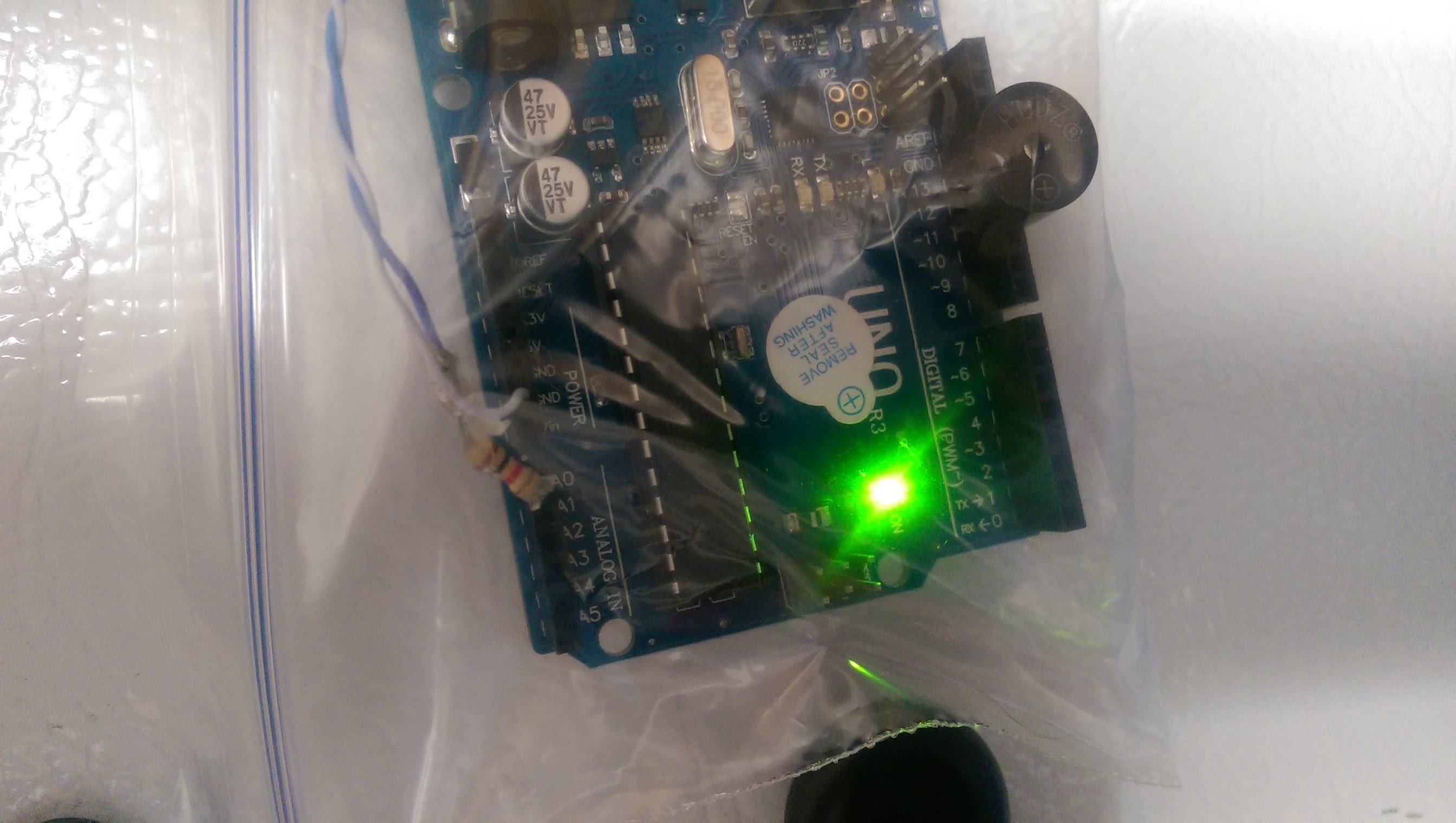

G+_Ben Reese Posted March 4, 2015 Author Share Posted March 4, 2015 The whole setup is kinda crude, but it works. The Arduino is in a zip lock bag and held to the fridge with a couple magnets. I sandwiched the wire into the foil and hot glued it. The wire I used is a couple strands from a length of cat 5 cable... Link to comment Share on other sites More sharing options...
