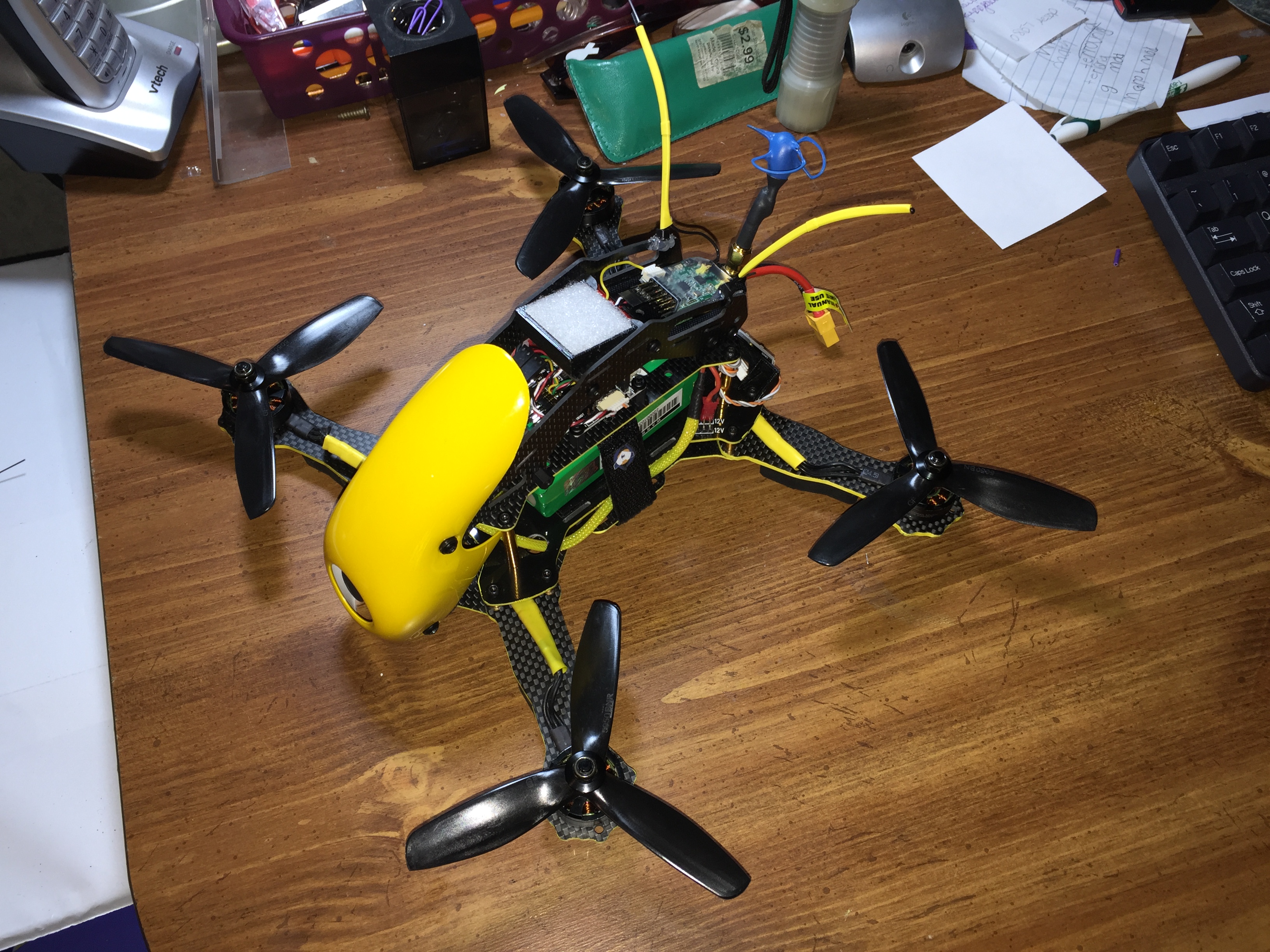

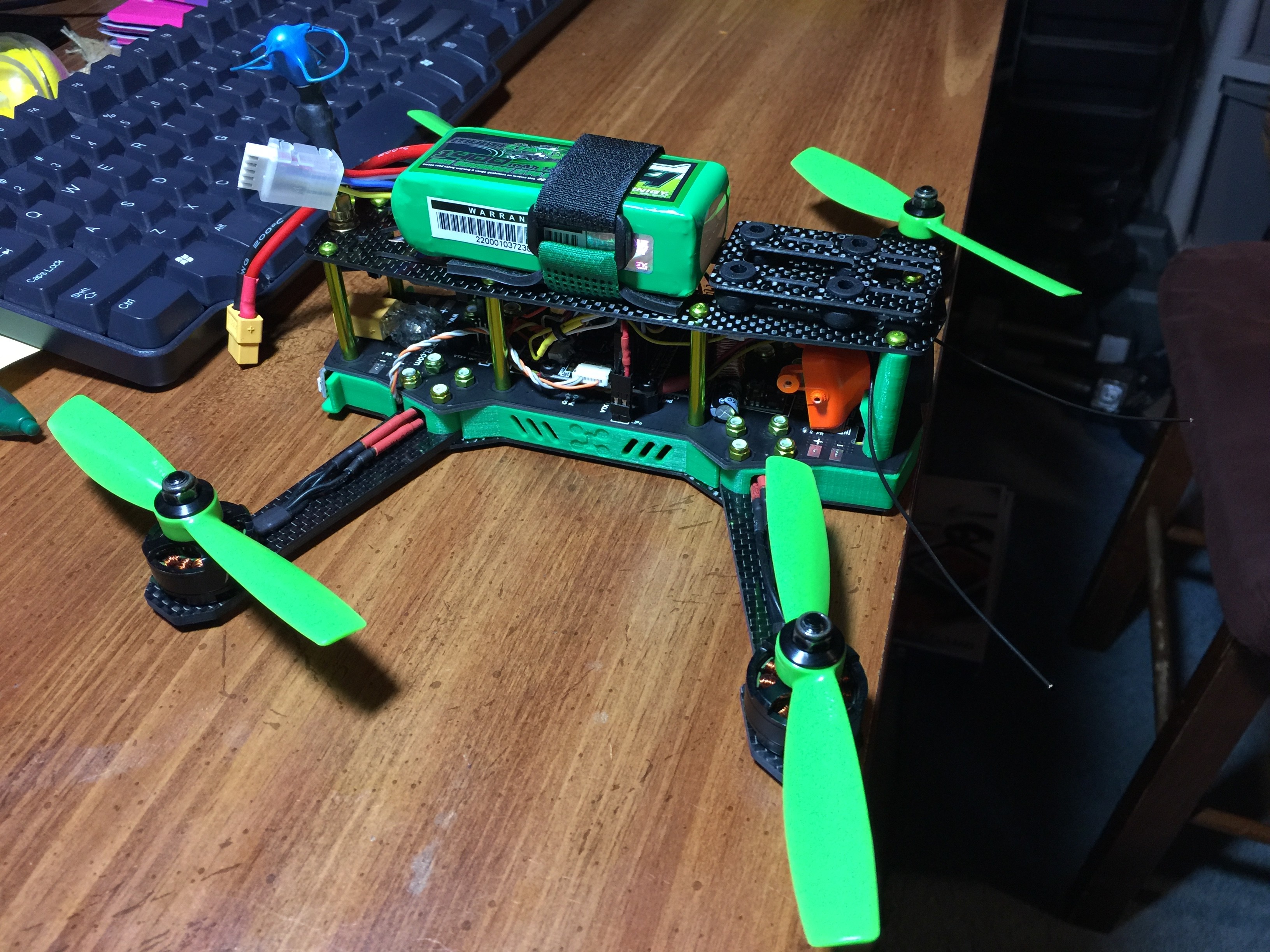

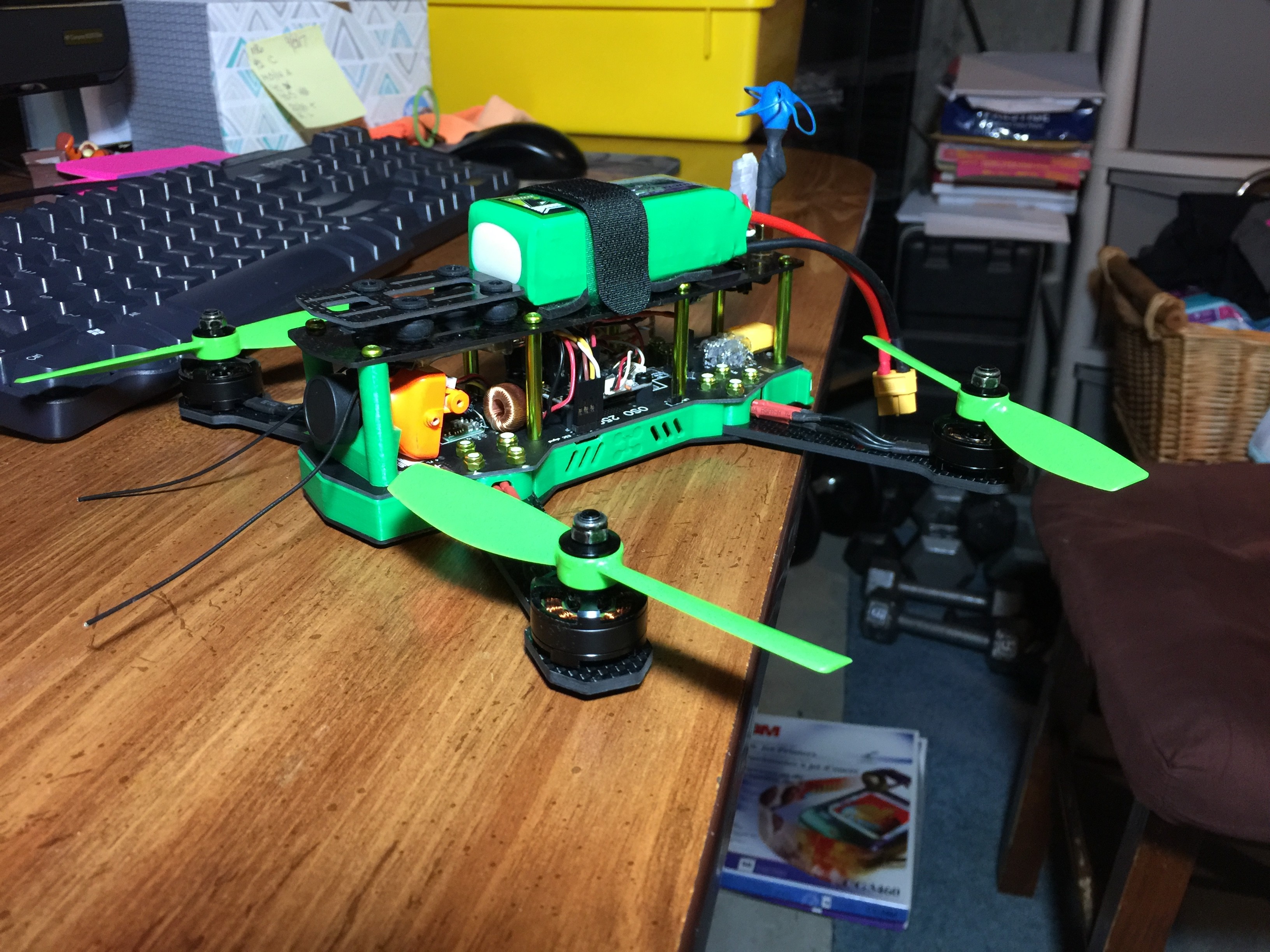

G+_Shooter_FPV (Shooter_FP Posted September 19, 2017 Share Posted September 19, 2017 Another project finished... My first racing quad build was a "Robocat 270", back in April 2016. I liked it at the time, but the front canopy cracked a few times, and wiring prevented me from putting the side covers on, so I didn't use it much. This past May I decided to get a ZMR250 and PDB and transplant the parts over to it from the Robocat. Finally got the time to do it, took me a few weeks, between trimming/soldering wires and faulty voltages on the PDB. Just did a 30 second hover in the basement and I still have all my fingers, so it's a success!! ? The Robocat is the yellow one, the ZMR250 is green... Link to comment Share on other sites More sharing options...
G+_Michael Whalen Jr Posted September 19, 2017 Share Posted September 19, 2017 That's cool Link to comment Share on other sites More sharing options...
G+_Ant Pruitt Posted September 20, 2017 Share Posted September 20, 2017 That looks badass! Looks like you used a all-in-one ESC. Right? I'm considering using 4piece ESCs for my forth coming build. I figured, if one ESC dies due to crash or power, I can replace it quickly and not have to pull the stack apart. Link to comment Share on other sites More sharing options...

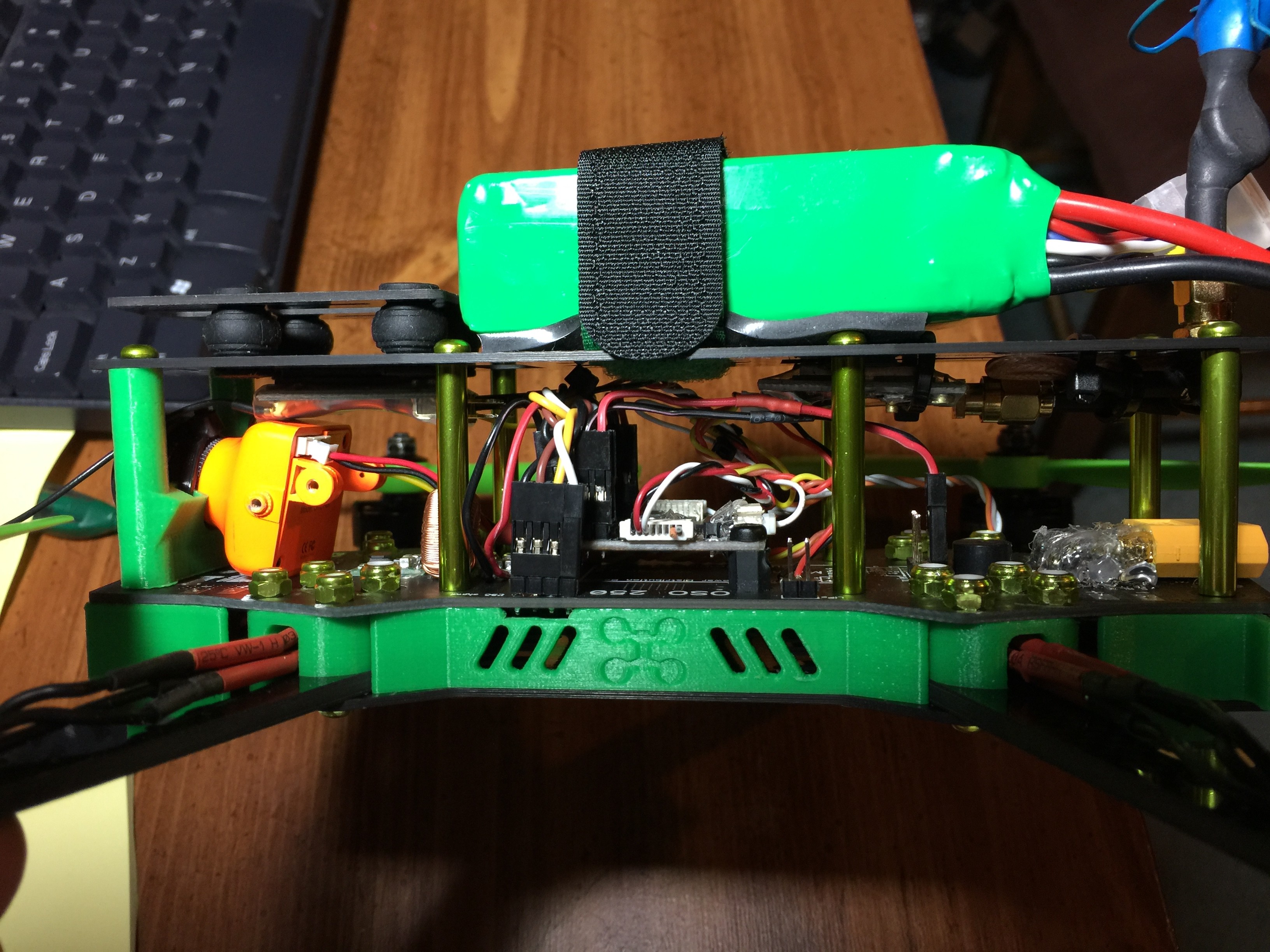

G+_Shooter_FPV (Shooter_FP Posted September 20, 2017 Author Share Posted September 20, 2017 Actually, it's not a 4-in-1 ESC, there are 4 individual DYS XM20A ESC's, they sit between the bottom plate and PDB, where the green frame is. It was a tight fit, only due to the wire length that they were at due to fitting in the old frame. I just ordered green LED's that I will stick to the bottom of each arm. They come in on Monday, so I'll post a pic of it lit, if I remember... lol... Link to comment Share on other sites More sharing options...
G+_Ant Pruitt Posted September 20, 2017 Share Posted September 20, 2017 Ken Jancef awesome! Link to comment Share on other sites More sharing options...

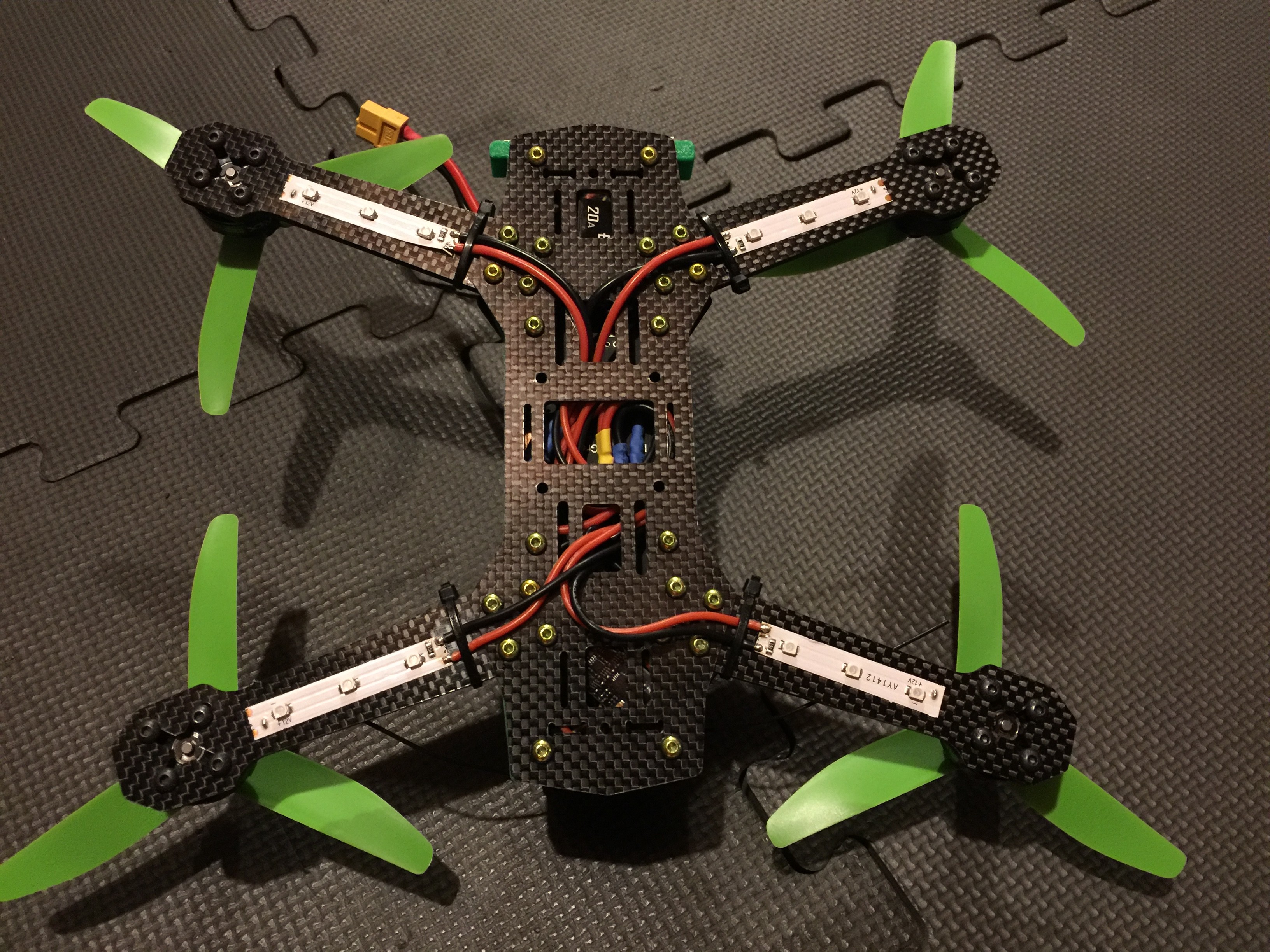

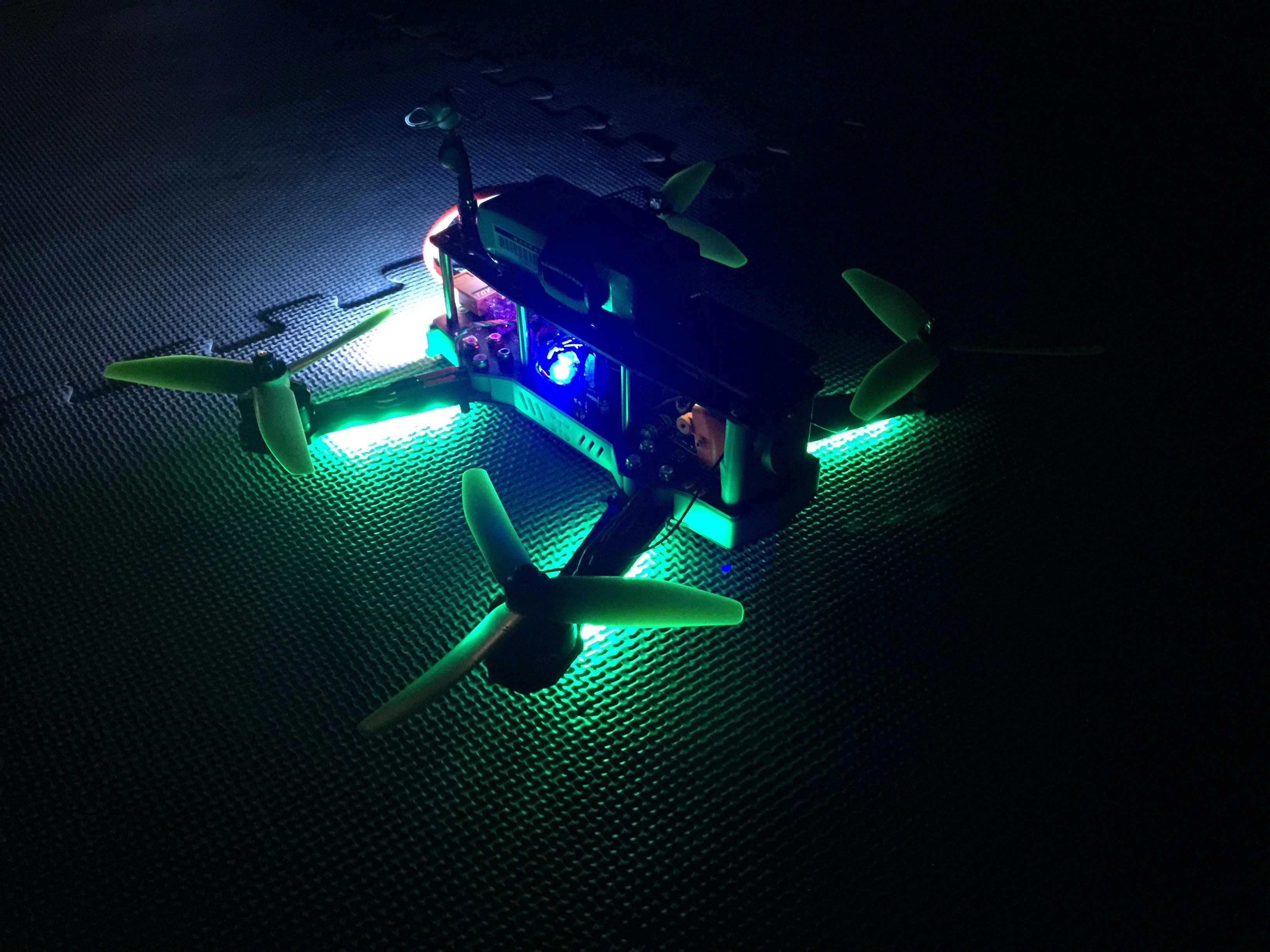

G+_Shooter_FPV (Shooter_FP Posted September 26, 2017 Author Share Posted September 26, 2017 First, thanks to Fr. Robert Ballecer, SJ for mentioning me on the show (twice now, humbled and honored...). I just finished adding green LED’s on the bottom, for no particular reason only because I wanted to... I also switched from 2-blade to tri-blade props. Now I just need to learn to fly better... but I REALLY do love building them. Link to comment Share on other sites More sharing options...

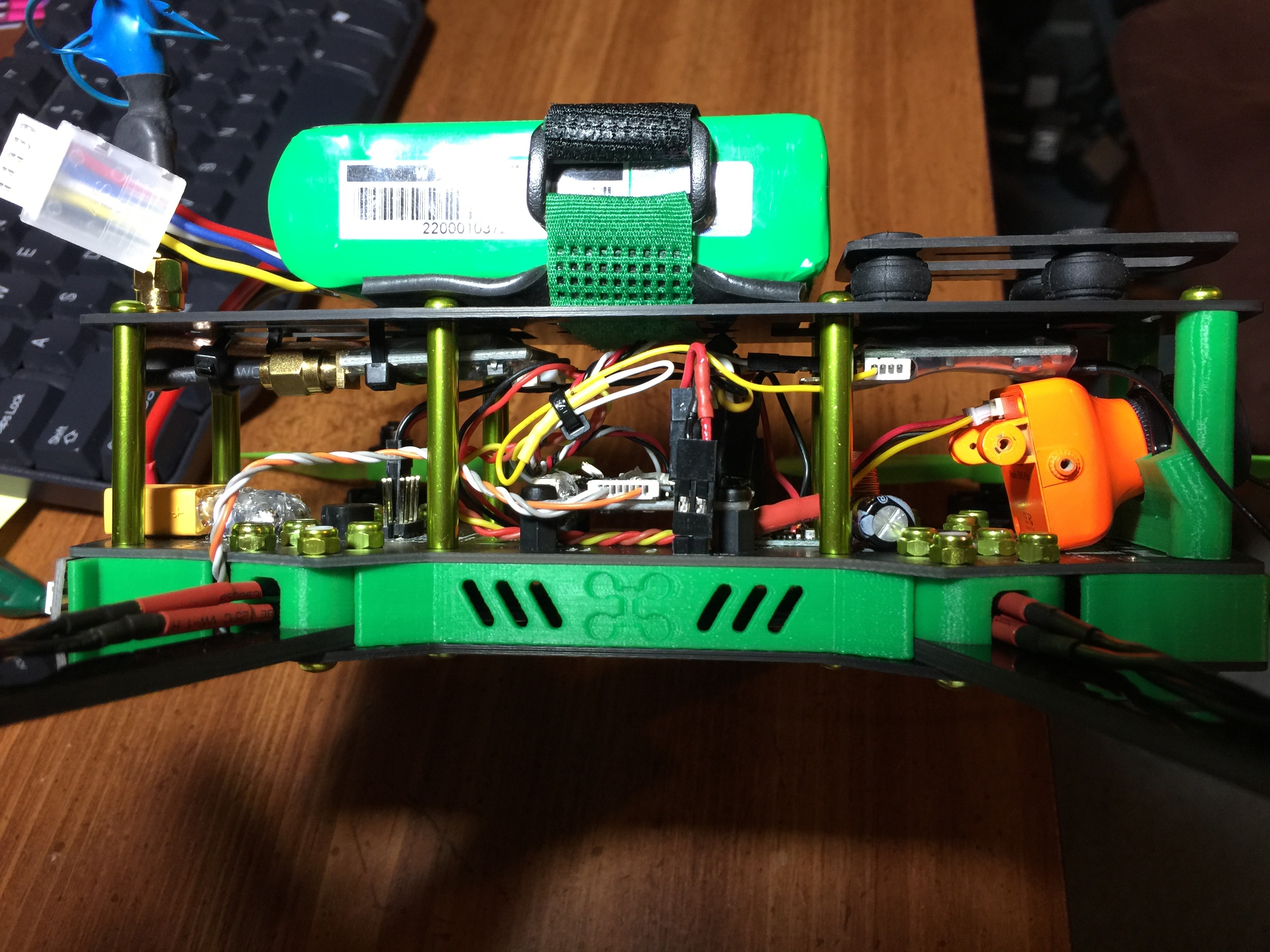

G+_Shooter_FPV (Shooter_FP Posted September 26, 2017 Author Share Posted September 26, 2017 Since for some reason I can’t post more than one picture at a time... what the wiring looks like. Not the nearest wiring I’ve done, but it works... Link to comment Share on other sites More sharing options...
G+_Ant Pruitt Posted September 26, 2017 Share Posted September 26, 2017 This is GORGEOUS Link to comment Share on other sites More sharing options...
