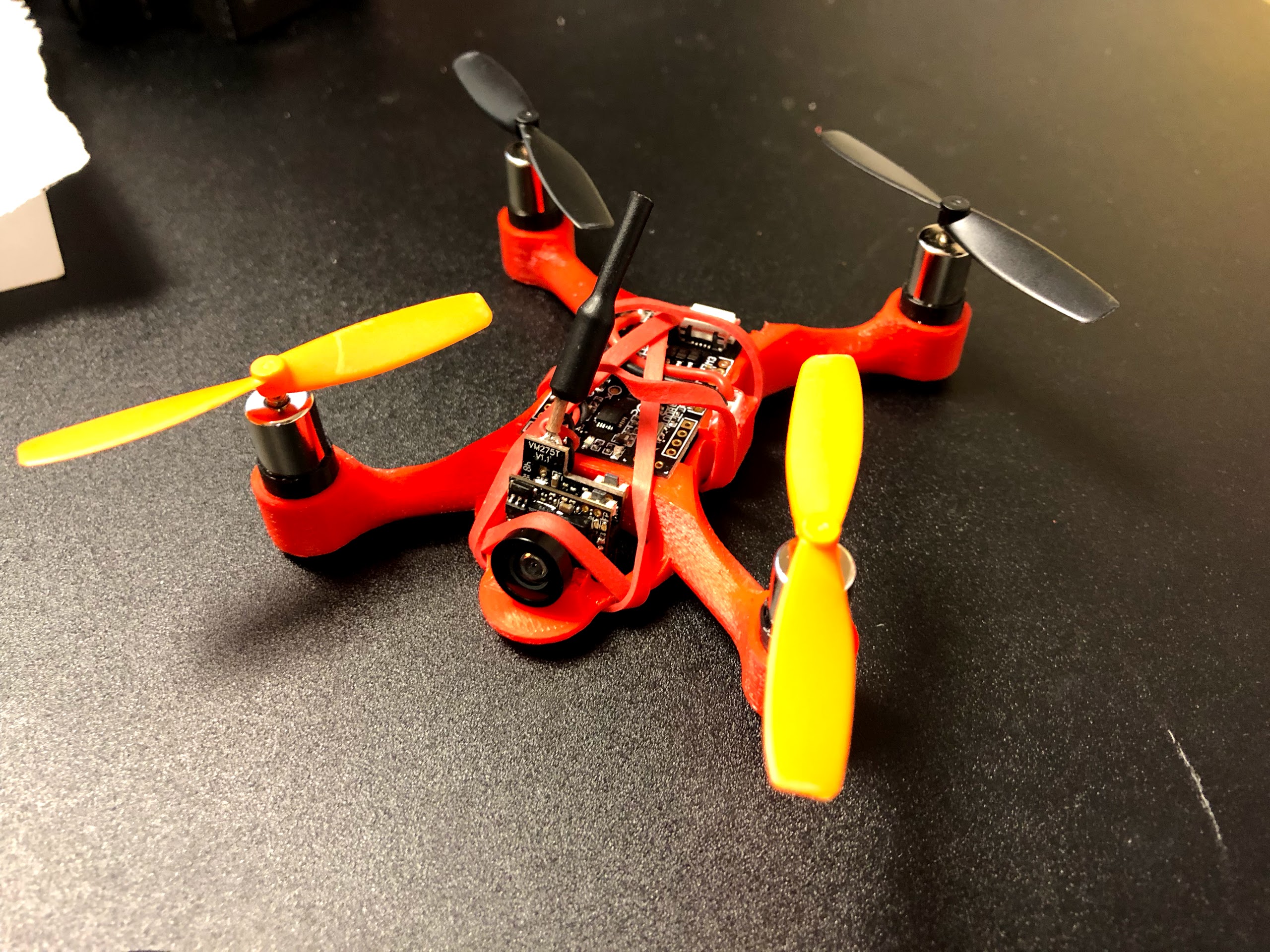

G+_Shooter_FPV (Shooter_FP Posted December 13, 2017 Share Posted December 13, 2017 Another drone build... in the “Tiny Whoop” class. 95mm 3D printed frame, 8.5mm motors, and of course FPV. And for such a tiny thing... it MOVES! A little too fast for me, but great to learn with. And a pretty easy build... Link to comment Share on other sites More sharing options...
G+_Fr. Robert Ballecer, SJ Posted December 14, 2017 Share Posted December 14, 2017 Woop indeed! Link to comment Share on other sites More sharing options...
G+_John D. Hawkins Posted December 14, 2017 Share Posted December 14, 2017 Is something like this a pretty advanced build? I have yet to actually do a Maker Project of my own. Link to comment Share on other sites More sharing options...
G+_Shooter_FPV (Shooter_FP Posted December 14, 2017 Author Share Posted December 14, 2017 John D. Hawkins Not really. The frame is 3D printed. The flight controller was maybe $11, and the receiver was, I think, less than $10. I did pay $27 for the motors, but that's because I have 2 smaller Tiny Whoops, and I get my motors from a place that specializes in small quad motors. The hardest part is the soldering. Since the parts are small, the solder spaces are pretty tight. And the motor wires being thin doesn't help. And as I said earlier, this thing is FAST. I ordered 5 sets of props just in case. I'm not used to something this fast, but it's great fun to fly. If you have any questions, please feel free to ask... if you're going to build it I can give you links to what I bought. Link to comment Share on other sites More sharing options...
G+_Shooter_FPV (Shooter_FP Posted December 14, 2017 Author Share Posted December 14, 2017 John D. Hawkins Here is the build video: Link to comment Share on other sites More sharing options...
G+_Steven Werds Posted December 14, 2017 Share Posted December 14, 2017 Yes I would like links too Link to comment Share on other sites More sharing options...
G+_Shooter_FPV (Shooter_FP Posted December 14, 2017 Author Share Posted December 14, 2017 Flight Controller: https://www.banggood.com/Eachine-32bits-F3-Brushed-Flight-Control-Board-Based-On-SP-RACING-F3-EVO-For-Micro-FPV-Frame-p-1076530.html?rmmds=myorder&cur_warehouse=CN Receiver: https://www.banggood.com/Eachine-Tiny-QX90-Quadcopter-Parts-Frsky-8CH-PPM-SBUS-Receiver-Compatible-Frsky-X9D-PLUS-X9E-DJT-DFT-p-1079410.html?rmmds=myorder&cur_warehouse=CN Motors: https://micro-motor-warehouse.com/collections/all-motors/products/cl-0820-15 FPV Camera: https://www.amazon.com/gp/product/B01MXTY646/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1 Frame: https://www.myminifactory.com/object/mk-xiii-micro-quad-28907 Link to comment Share on other sites More sharing options...
G+_Shooter_FPV (Shooter_FP Posted December 14, 2017 Author Share Posted December 14, 2017 One note: The black pieces surrounding the motors are motor mounts, and he suggests printing in NinjaFlex, which I did. If you can't print in NinjaFlex, he has them for sale on his website for, I believe, $5. Link to comment Share on other sites More sharing options...
G+_John D. Hawkins Posted December 14, 2017 Share Posted December 14, 2017 Sweet! Thanks for the info. Do you have printer suggestion? Link to comment Share on other sites More sharing options...
G+_Shooter_FPV (Shooter_FP Posted December 14, 2017 Author Share Posted December 14, 2017 John D. Hawkins I think I just did 100% infill, being that it would be stronger for the way I fly (crash)... the one problem I had was that in front, where the camera is, the mount extends up on both sides to fit the camera in between. Well I tried 3 different slicer programs, and for some reason those side pieces print so weak that they just snap off. You can probably see that in my picture... It’s ok, because there’s enough of that mount left that the camera fits in perfectly anyway. Hope that made sense... ? Link to comment Share on other sites More sharing options...
G+_David Peach Posted December 15, 2017 Share Posted December 15, 2017 What radio are you using? That's what is stopping me from getting into quads. I know I can build a fun quad for $50. But I don't know if buying a $70 radio is good enough or if I should be looking at the $200 units. Link to comment Share on other sites More sharing options...
G+_Shooter_FPV (Shooter_FP Posted December 15, 2017 Author Share Posted December 15, 2017 David Peach I use a Taranis X9D. I got it a few years ago. It’s great because it hold up to 32 profiles. So I can use it for my Whoops, all the way up to my 250 build. I know it’s expensive, but it was worth it for me. There are cheaper Taranis models out there now, but I guess it comes down to how many quads you think you’ll have. Go with either Spektrum of FrSky. On all of the quad forums I participate in, it seems that the most problems are with Spektrum, so not sure why it would have an advantage over FrSky. I knew I’d get sucked into quads, that’s why I got the Taranis. Link to comment Share on other sites More sharing options...
G+_David Peach Posted December 15, 2017 Share Posted December 15, 2017 Ken Jancef I tend to get pulled into hobbies like this and spend a lot of money for something that gets replaced by another hobby in 2 years. Trying to manage how deeply involved I get. Link to comment Share on other sites More sharing options...
G+_Shooter_FPV (Shooter_FP Posted December 15, 2017 Author Share Posted December 15, 2017 David Peach oh I hear you... I can build WAY better than I can fly, but I’m still all-in on quads. That’s why I invested in the Taranis X9D. They just came out with a cheaper one, I think it’s QX7, but don’t quote me on that, I’m on the road and can’t research. My buying point is having multiple profiles. Link to comment Share on other sites More sharing options...
G+_David Peach Posted December 15, 2017 Share Posted December 15, 2017 What I really want is a friend to buy all the parts and let me build it for them. Let me fly for a couple of days and then hand it over. I get so much joy in the building process for projects like this. Taking the time to get skilled at flying would never happen. Link to comment Share on other sites More sharing options...
G+_David Peach Posted December 15, 2017 Share Posted December 15, 2017 Ken Jancef, you sent me down a rabbit hole of radio research. The Q X7 seems to hit the sweet spot of all the features you need, flexibility, and price. I've looked at other radios and wonder if I would regret a cheaper purchase. From what I've read, I probably would never outgrow the X7. Now, will I buy one and get started? I still don't know. Link to comment Share on other sites More sharing options...
G+_Shooter_FPV (Shooter_FP Posted December 15, 2017 Author Share Posted December 15, 2017 Well I’m glad you’re thinking about it first. I do like my X9D though... Link to comment Share on other sites More sharing options...
